S32a

S32a; SABA; Villingen (ID = 2170277) Radio
Use red slider bar for more.
S32a; SABA; Villingen (ID = 2170277) Radio

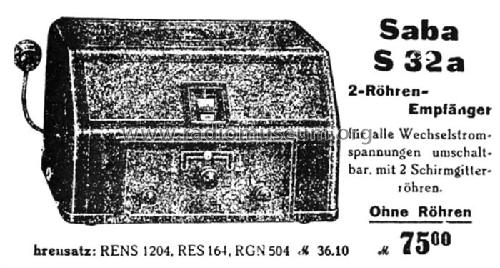

SABA; Villingen: S32a [Radio] ID = 2170277 700x376
Select picture or schematic to display from thumbnails on the right and click for download.
For model S32a, SABA; Villingen:
Händlerkatalog ca. 1932

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1204 RES164 RGN504
schematic requested
Main principle TRF with regeneration; 1 AF stage(s)
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: S32a - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 190 x 230 mm / 13.4 x 7.5 x 9.1 inch
Notes =Auslaufmodell SKB von 1930
Price in first year of sale 75.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
