Sabafon TK230-S / TK230-SG
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1964/1965
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 100620
-
- Brand: Schwer & Söhne, GmbH

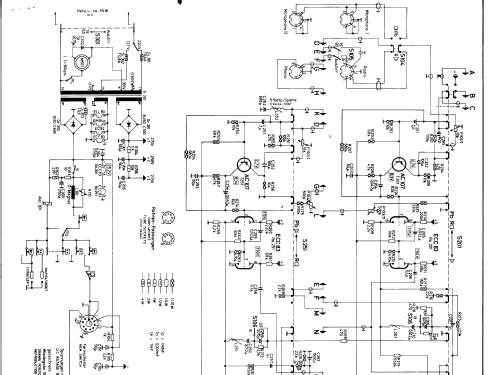

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 127, 220 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Sabafon TK230-S / TK230-SG - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 410 x 370 x 190 mm / 16.1 x 14.6 x 7.5 inch
- Notes
- Sabafon TK 230-S (TK230-S / TK230-SG) ist ähnlich wie TK 220-S, ist jedoch mit 2 größeren Lautsprechern (155 x 95 mm) bestückt. Dieses Sabafon TK230S ist mit Röhren und 2 Transistoren bestückt, also ein Hybrid-Gerät.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Walter Groer. See "Data change" for further contributors.
