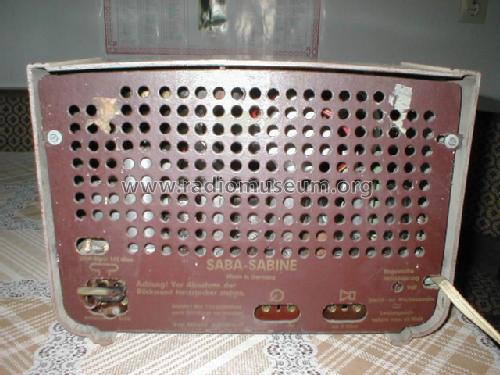

Sabine 55070 - 3000a; SABA; Villingen (ID = 20323) Radio Sabine 55070 - 3000a; SABA; Villingen (ID = 20321) Radio
Sabine 55070 - 3000a; SABA; Villingen (ID = 20322) Radio Sabine 55070 - 3000a; SABA; Villingen (ID = 24212) Radio
Sabine 55070 - 3000a; SABA; Villingen (ID = 24214) Radio Sabine 55070 - 3000a; SABA; Villingen (ID = 85138) Radio
Sabine 55070 - 3000a; SABA; Villingen (ID = 85139) Radio Sabine 55070 - 3000a; SABA; Villingen (ID = 181558) Radio
Use red slider bar for more.
Sabine 55070 - 3000a; SABA; Villingen (ID = 381404) Radio
SABA; Villingen: Sabine 55070 - 3000a [Radio] ID = 381404 897x612
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sabine 55070 - 3000a elfenbein, SABA; Villingen:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 472/6750 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Sabine 55070 - 3000a [elfenbein] - SABA; Villingen
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 198 x 175 mm / 11.8 x 7.8 x 6.9 inch
Notes Modell auch in Ausführung braun und gold.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 214.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
Mentioned in HdB d.Rdf-& Ferns-GrH 1957/58

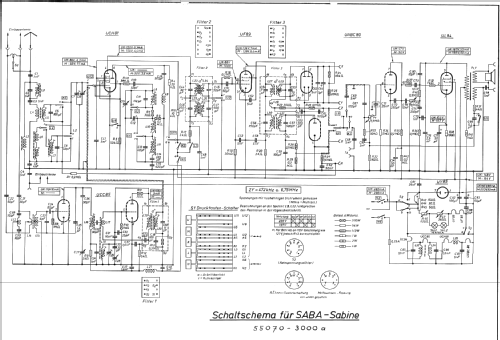

Literature/Schematics (1) -- Original-techn. papers.
