Schauinsland P170 electronic H

Schauinsland P170 electronic H; SABA; Villingen (ID = 398166) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398167) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398168) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398195) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398196) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398197) Television

Schauinsland P170 electronic H; SABA; Villingen (ID = 398198) Television
Schauinsland P170 electronic H; SABA; Villingen (ID = 1671965) Television Schauinsland P170 electronic H; SABA; Villingen (ID = 116722) Television
Schauinsland P170 electronic H; SABA; Villingen (ID = 1671963) Television Schauinsland P170 electronic H; SABA; Villingen (ID = 1671966) Television
Schauinsland P170 electronic H; SABA; Villingen (ID = 1671968) Television Schauinsland P170 electronic H; SABA; Villingen (ID = 1671971) Television
Schauinsland P170 electronic H; SABA; Villingen (ID = 2049318) Television Schauinsland P170 electronic H; SABA; Villingen (ID = 2049319) Television
Schauinsland P170 electronic H; SABA; Villingen (ID = 2365111) Television Schauinsland P170 electronic H; SABA; Villingen (ID = 2365112) Television
Use red slider bar for more.
Schauinsland P170 electronic H; SABA; Villingen (ID = 1671965) Television

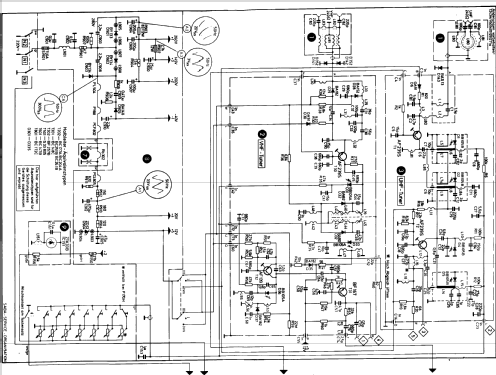

SABA; Villingen: Schauinsland P170 electronic H [Television] ID = 1671965 933x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland P170 electronic H, SABA; Villingen:
aus ebay-Auktion 231259724325 Anbieter: "l.i."

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1970 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 5: PCL805 PCF802 PL504 PY88 A44-120W
Semiconductors (the count is only for transistors) 17: AF239 AF139 BF167 BF196 BF197 BC172 BF258 BC170 BC212 SE4020 BC171 TBA120 BC238 MJE340 ZTK33 TBA480 BB105 BA152 BA182 BY133 BY134
Main principle Super-Heterodyne (Super in general); ZF/IF 38900/33400/5500 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Schauinsland P170 electronic H - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 365 x 315 mm / 20.7 x 14.4 x 12.4 inch
Notes

VHF und UHF nach CCIR B/G.

44 cm s/w TV.

120 W Leistungsaufnahme.

Halbleitertypen nur einmal gelistet.





Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Collectors' prices

Model page created by Alexander Schmitz. See "Data change" for further contributors.



All listed radios etc. from SABA; Villingen
