Schauinsland T159 Automatic

SABA; Villingen

  • Year
  • 1964/1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 110139
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 38900/5500 kHz; 2 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Schauinsland T159 Automatic - SABA; Villingen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 720 x 480 x 370 mm / 28.3 x 18.9 x 14.6 inch
  • Notes

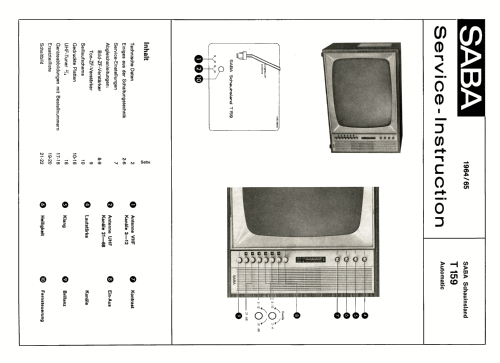

  • Saba, Schauinsland T159 Automatic

    • 59 cm s/w Fernsehgerät
    • UHF Transistor Tuner.
    • Empfangsbereiche
      • VHF-Bereich: Kanäle 2 - 12
      • UHF-Bereich: Kanäle 21 - 68
    • Lautsprecher: 1 Stück 22 x 15 cm. und 1 Stück 15 x 8 cm.
    • Antenneneingang 240 Ohm symmetrisch.

    Die kabelgebundene Fernbedienung Typ FS15 enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.

    Standbeine oder Laufrollen gegen Mehrpreis (31,- DM).

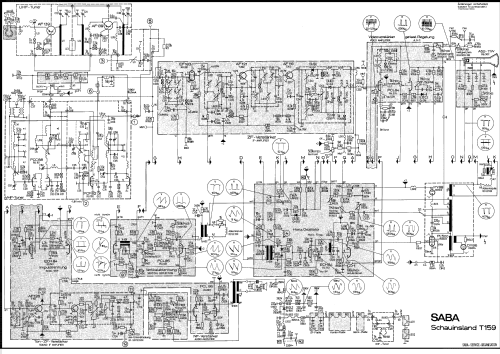

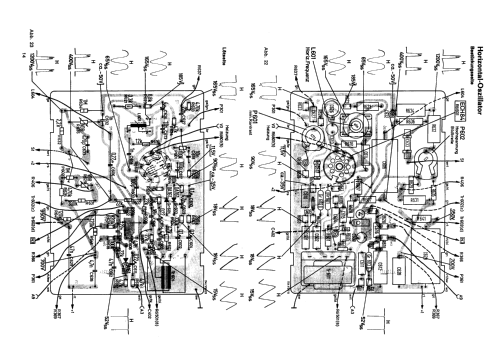

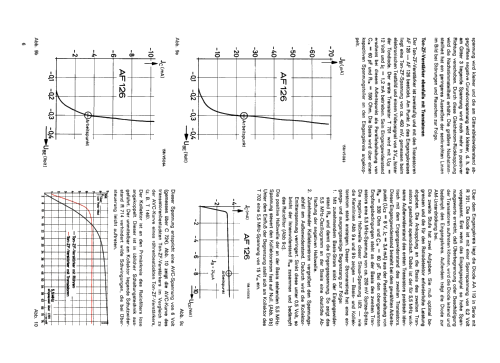

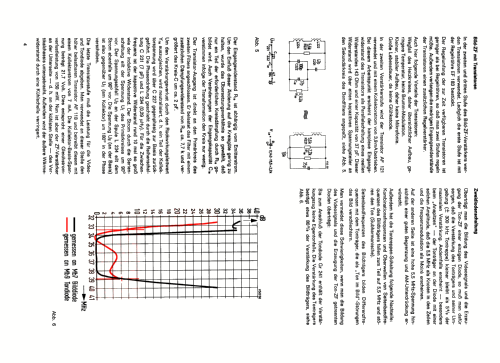

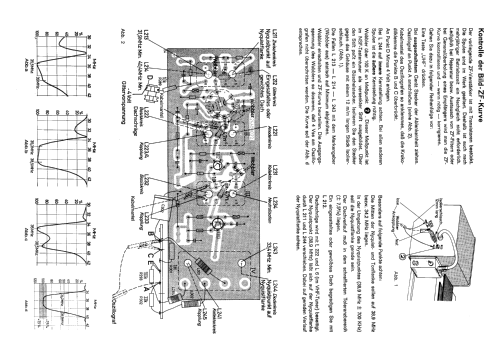

    There are two differences between both schematics in the Technical manual and the Service manual. One consists of the T701 (AF126) circuit, and the second is the T202 transistor that switches from AF121 to AF106.

  • Net weight (2.2 lb = 1 kg)
  • 29.2 kg / 64 lb 5.1 oz (64.317 lb)
  • Price in first year of sale
  • 1,381.00 DM

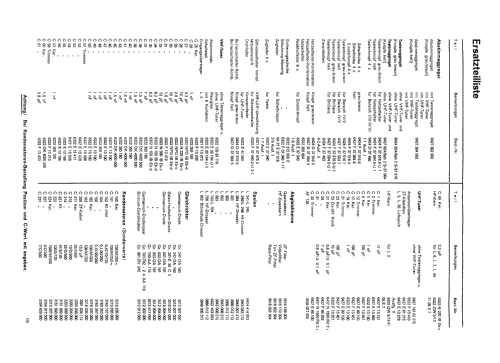

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
