Schauinsland T243 electronic G

Schauinsland T243 electronic G; SABA; Villingen (ID = 994996) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 994997) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 994998) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 994999) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 995000) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 995001) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 995005) Television

Schauinsland T243 electronic G; SABA; Villingen (ID = 995006) Television
Schauinsland T243 electronic G; SABA; Villingen (ID = 808275) Television Schauinsland T243 electronic G; SABA; Villingen (ID = 411987) Television
Use red slider bar for more.
Schauinsland T243 electronic G; SABA; Villingen (ID = 808275) Television
SABA; Villingen: Schauinsland T243 electronic G [Television] ID = 808275 220x159
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schauinsland T243 electronic G, SABA; Villingen:

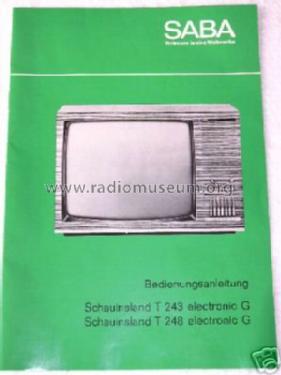

Detailbild von Bedienungsanleitung

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1971/1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 5: A61-120W PCL805 PCF802 PL504 PY88
Semiconductors (the count is only for transistors) 17:
Main principle Super-Heterodyne (Super in general); ZF/IF 38900/33400/5500 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Schauinsland T243 electronic G - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 480 x 425 mm / 27.6 x 18.9 x 16.7 inch
Notes Saba Schauinsland T243 Electronic G,
61 cm s/w Fernsehgerät, 7 Programmspeichertasten, VHF/UHF Tuner nach CCIR B/G. 2 ICs.
Ausführung: Edelholz mitteldunkel poliert oder Nußbaum naturhell (664,-DM) oder mattweiss (680,-DM).
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Price in first year of sale 648.00 DM
Source of data Handbuch VDRG 1971/1972

Model page created by a member from A. See "Data change" for further contributors.
