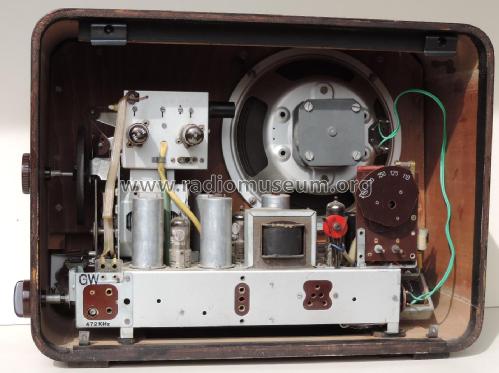

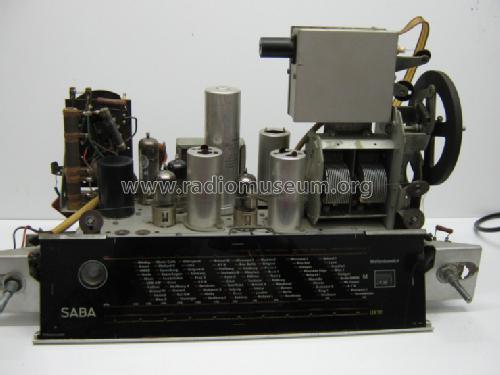

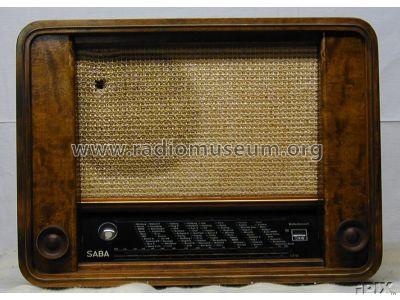

SABA; Villingen: Schwarzwald GW [Radio] ID = 450732 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model Schwarzwald GW, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner

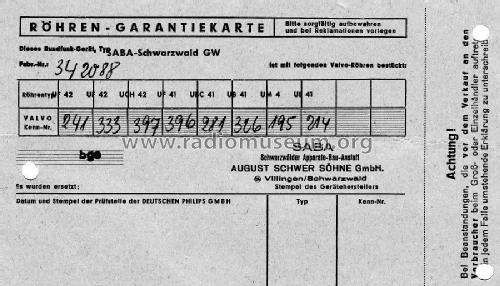

Valves / Tubes 8: UF42 UF42 UCH42 UF41 UM4 UB41 UBC41 UL41 220E100L
Main principle Super-Heterodyne (Super in general); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Schwarzwald GW - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 474 x 355 x 228 mm / 18.7 x 14 x 9 inch
Notes Variable Bandbreite realisiert mit MHG Schaltung.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 398.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1951/52


All listed radios etc. from SABA; Villingen
Here you find 1553 models, 1413 with images and 1041 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
