Stereo I (Stereo 1) Mod. SRI 18

Stereo I Mod. SRI 18; SABA; Villingen (ID = 40279) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 40280) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 31644) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 400734) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 400735) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 400736) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 1969000) Radio

Stereo I Mod. SRI 18; SABA; Villingen (ID = 1968999) Radio
Stereo I Mod. SRI 18; SABA; Villingen (ID = 2152788) Radio Stereo I Mod. SRI 18; SABA; Villingen (ID = 81195) Radio

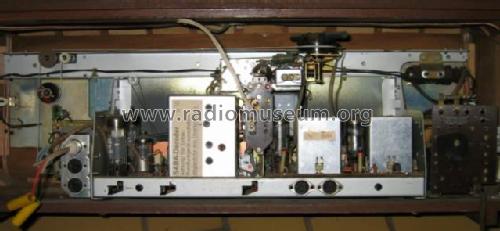

Stereo I Mod. SRI 18; SABA; Villingen (ID = 81197) Radio Stereo I Mod. SRI 18; SABA; Villingen (ID = 81196) Radio
Stereo I Mod. SRI 18; SABA; Villingen (ID = 62589) Radio Stereo I Mod. SRI 18; SABA; Villingen (ID = 81198) Radio
Stereo I Mod. SRI 18; SABA; Villingen (ID = 148595) Radio Stereo I Mod. SRI 18; SABA; Villingen (ID = 148596) Radio
Stereo I Mod. SRI 18; SABA; Villingen (ID = 148597) Radio Stereo I Mod. SRI 18; SABA; Villingen (ID = 277766) Radio
Use red slider bar for more.
Stereo I Mod. SRI 18; SABA; Villingen (ID = 2152788) Radio
SABA; Villingen: Stereo I Mod. SRI 18 [Radio] ID = 2152788 1400x1069
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo I (Stereo 1) Mod. SRI 18, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 ECC83 EMM803 ECLL800 ECLL800
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (max.)
from Radiomuseum.org Model: Stereo I Mod. SRI 18 - SABA; Villingen
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 645 x 235 x 220 mm / 25.4 x 9.3 x 8.7 inch
Notes

Stereo-Steuergerät mit separaten Lautsprecherboxen (im Lieferumfang).

2 Endstufen mit je 7 Watt Spitzenleistung. Serienmässig mit Stereo-Decoder, Magisches Band für UKW-Stereo Anzeige, separate Regler für Höhen, Tiefen und Balance. Zwei Lautsprecherboxen (BHT 240×235×220 mm) im Lieferumfang.

Technische Daten wie Freudenstadt 16 Stereo, jedoch als Steuergerät mit separaten Lautsprecherboxen.

Transistoren: 6× AF126; Dioden: 2× AA113, BA101, 11× AA119.


Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
Mentioned in Handbuch VDRG 1966/1967
Literature/Schematics (1) -- Original-techn. papers. (Saba Programm 1967/68)


All listed radios etc. from SABA; Villingen
Here you find 1564 models, 1424 with images and 1048 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Stereo I Mod. SRI 18
Threads: 3 | Posts: 3
Hits: 1642     Replies: 0
saba: SRI 18; Stereo I (Stereo 1)
Juergen Gisa
12.Aug.14
  1

Das Modell SRI 18 hat keine 3,5 W Ausgangsleistung sondern 8 W (ECLL800) ! Mein Gerät klingt übrigens auch heute noch ausgezeichnet.

Gruß

Jürgen


Hits: 2743     Replies: 0
saba: SRI 18; Stereo I (1)
Juergen Gisa
08.Mar.08
  1 Die Leistungsangabe von 3,5 Watt scheint mir nicht richtig zu sein, die ECLL800 kann 8,5 Watt erbringen.

Hits: 2055     Replies: 0
saba: I(1); Stereo
Franz-Josef Haffner
19.Nov.03
  1 weitere technische Dokumente siehe Modell Freudenstadt 16:
http://www.radiomuseum.org/dsp_modell.cfm?model_id=26117

SABA; Villingen: Stereo I Mod. SRI 18
