T 3716 Telecommander G
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1972 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 262916
-
- Brand: Schwer & Söhne, GmbH

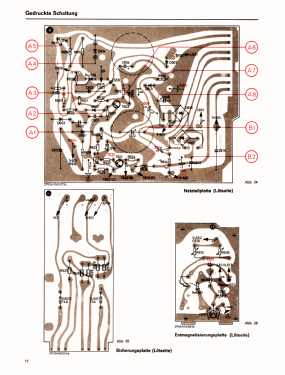

Bild aus dem SABA Service Manual

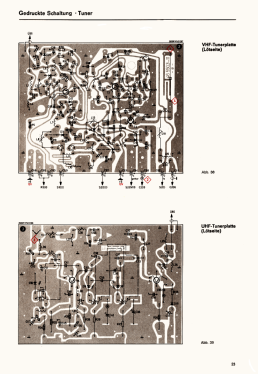

Bild aus dem SABA Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- 57
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

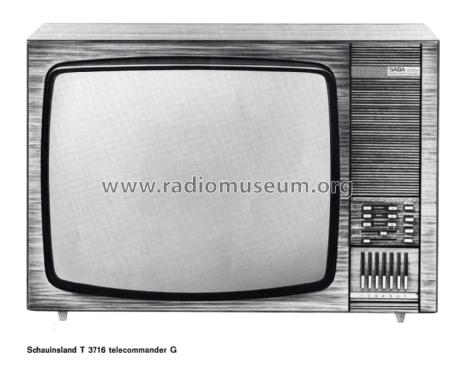

- Model: T 3716 Telecommander G - SABA; Villingen
- Shape
- Tablemodel, low profile (big size).
- Notes
-
PAL Color, 7 Programm VHF/UHF Tuner nach CCIR B/G.
57 Transistoren, 4 IC, 102 Dioden, 11 Röhren, 9 Thyristoren..
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
