Transeuropa automatic ; SABA; Villingen (ID = 105057) Radio

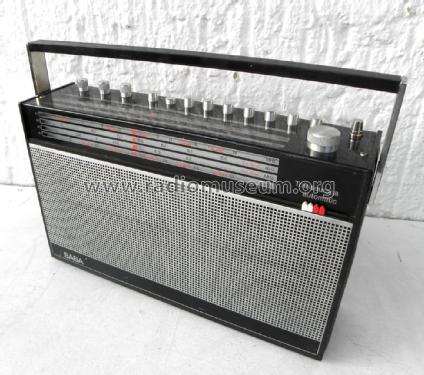

SABA; Villingen: Transeuropa automatic [Radio] ID = 105057 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transeuropa automatic neu, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 5×1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 3.6 W (unknown quality)
from Radiomuseum.org Model: Transeuropa automatic [neu] - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 200 x 90 mm / 13.4 x 7.9 x 3.5 inch
Notes 4 Kurzwellen- und 2 MW-Bereiche; Empfangsmöglichkeit für 40-m- und 80-m-Amateurband. Autobetrieb ohne Autohalterung möglich, dann Ausgangsleistung 6 W (Musik).
Gehäuse: Lederlook, brillantweiss oder anthrazit, oder Holzlook, hell mattiert.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 318.00 DM
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
