Transeuropa Automatic H

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1972/1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111205

• • Brand: Schwer & Söhne, GmbH

• Picture

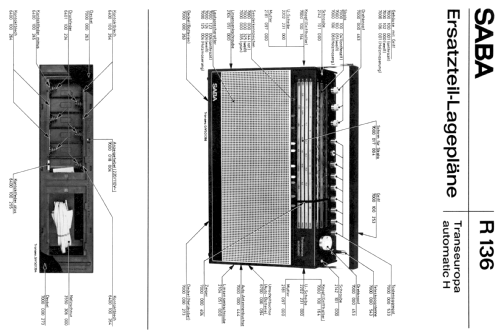

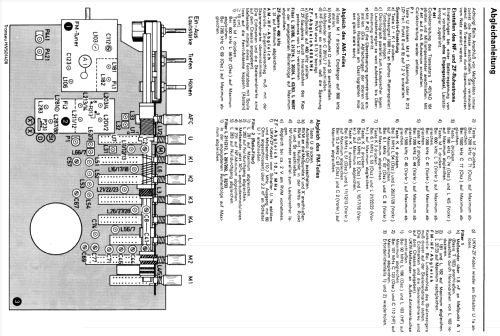

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• AF106 AF106 AF121 AF121 AF121 AF121 AC122 BC173 BC172 BC172 BC172 BC252 AD161 AD161 AC117 OA90 BB103 AA143 AA116 BZX62 BZ102 B30C450

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 50 Hz, 110; 220 / DC: 6-12 / C: 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3.6 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transeuropa Automatic H - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 340 x 200 x 90 mm / 13.4 x 7.9 x 3.5 inch

• Notes

• Empfangsbereiche:

  • UKW: 87,5 - 104 MHz
  • KW1: 6800 - 18900 kHz
  • KW2: 15000 - 15500 kHz (19 m Band)
  • KW3: 5900 - 6230 kHz (49 m Band)
  • KW4: 2800 - 7500 kHz
  • MW1: 510 - 1220 kHz
  • MW2: 1180 - 1630 kHz
  • LW: 150 - 300 kHz

  Ferritstab für M/L, Teleskopantenne für UKW/KW, Rahmenantenne für KW, abschaltbare AFC für UKW, getrennte Höhen- und Tiefenregelung, 2 Lautsprecher, davon 1x oval 18 x 13 cm und 1x Hochton 6 cm Ø, separat abschaltbar. Skalenbeleuchtung nur bei Netzbetrieb.

  Anschlüsse für Aussenantennen, Autoantenne und Erde, TA/TB, Schaltbuchse für Aussenlautsprecher/Kleinhörer.

  Ausführung: Kunststoff mit Kunstlederbezug weiss oder orange oder anthrazit oder Holzlook, hell mattiert.

  Siehe auch Vorläufer Saba Transeuropa automatic / Transeuropa automatic G mit jeweils 12 Transistoren.

  ---

  At the top, from left, three knobs for on/off - volume, bass, and treble; a series of buttons for AFC and the 8 wavebands; tuning knob and rotating telescopic antenna, external when not in use, 7 sections, 87 cm. Pressing the first two band buttons simultaneously deactivates radio reception.

  On the right side, sockets for external 6-12 volt power supply and external antenna.
  At the rear, bottom left, power socket, car power on/off, and a DIN in-out socket; on the right, socket for earphone/external speaker, tweeter mute switch, and sockets for an external FM and AM antenna.
  At the bottom are two doors for accessing the battery compartment and storing the power cable. FTZ-Nr.U104.

  Two speakers: one oval, 17.5 x 12.5 cm, and one round, 6 cm in diameter, switchable.

  Rigid, metal and plastic, full-travel handle.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 258.00 DM

• Mentioned in
• Handbuch VDRG 1972/1973 (S.F29, ohne Zusatz H)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
