Triberg W52

Triberg W52; SABA; Villingen (ID = 9836) Radio

Triberg W52; SABA; Villingen (ID = 9837) Radio

Triberg W52; SABA; Villingen (ID = 9838) Radio

Triberg W52; SABA; Villingen (ID = 708943) Radio
Triberg W52; SABA; Villingen (ID = 1109168) Radio Triberg W52; SABA; Villingen (ID = 2621410) Radio
Triberg W52; SABA; Villingen (ID = 21569) Radio Triberg W52; SABA; Villingen (ID = 109585) Radio
Triberg W52; SABA; Villingen (ID = 147268) Radio Triberg W52; SABA; Villingen (ID = 147269) Radio
Triberg W52; SABA; Villingen (ID = 170806) Radio Triberg W52; SABA; Villingen (ID = 170807) Radio
Triberg W52; SABA; Villingen (ID = 170808) Radio Triberg W52; SABA; Villingen (ID = 1109169) Radio
Use red slider bar for more.
Triberg W52; SABA; Villingen (ID = 1109168) Radio

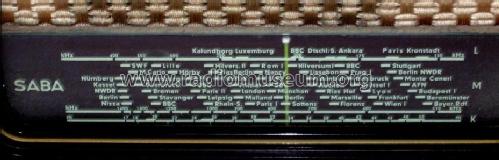

SABA; Villingen: Triberg W52 [Radio] ID = 1109168 884x686
Select picture or schematic to display from thumbnails on the right and click for download.
For model Triberg W52, SABA; Villingen:
ebay 270862083342, Verkäufer jeremias-p

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EF41 EBC41 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Triberg W52 - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 334 x 222 x 166 mm / 13.1 x 8.7 x 6.5 inch
Notes

Autotrafo, keine Netztrennung !!!


Siehe auch WP52 und GW52, die zusätzlich mit TA-Anschluss und Bass-Schalter ausgerüstet sind. Netzgleichrichter = 220E60L.
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
