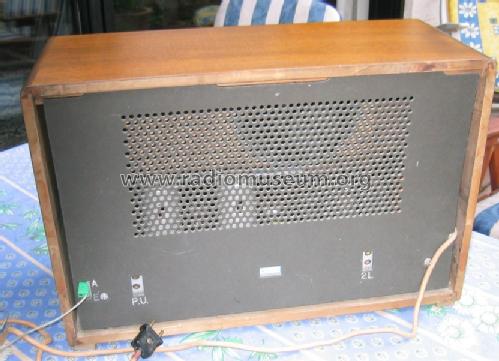

Sachsenwerk: Olympia 48 [Radio] ID = 363578 837x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympia 48, Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Niedersedlitz, VEB Elektromaschinenbau; Niedersedlitz (Ostd.)
Brand

VEB Elektromaschinenbau Sachsenwerk
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH21 EF22 7C6 EF22 EM4 EBL21 AZ21
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Olympia 48 - Sachsenwerk Niedersedlitz,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 372 x 257 mm / 22 x 14.6 x 10.1 inch
Notes Jahr nicht ganz sicher. Export CH, Mallory-Batterie für Gittervorspannung der 7C6.
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
