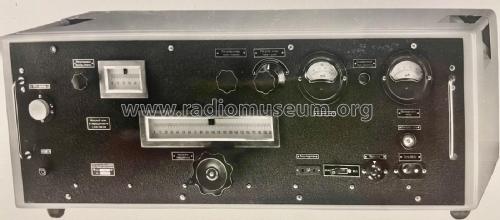

Leistungsmeßsender LMS 551

Leistungsmeßsender LMS 551; Sachsenwerk Radeberg (ID = 1639090) Equipment Leistungsmeßsender LMS 551; Sachsenwerk Radeberg (ID = 1639091) Equipment
Leistungsmeßsender LMS 551; Sachsenwerk Radeberg (ID = 1639092) Equipment Leistungsmeßsender LMS 551; Sachsenwerk Radeberg (ID = 1639093) Equipment
Use red slider bar for more.
Leistungsmeßsender LMS 551; Sachsenwerk Radeberg (ID = 1639090) Equipment
Sachsenwerk Radeberg: Leistungsmeßsender LMS 551 [Equipment] ID = 1639090 933x476

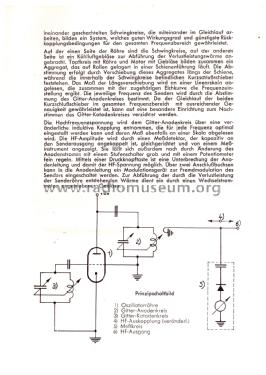

Select picture or schematic to display from thumbnails on the right and click for download.
For model Leistungsmeßsender LMS 551, Sachsenwerk Radeberg, VEB; Radeberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  Sachsenwerk Radeberg, VEB; Radeberg (Ostd.)
Year: 1953 ? Category: Service- or Lab Equipment
Valves / Tubes OSW2004 AZ11 AZ11
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Leistungsmeßsender LMS 551 - Sachsenwerk Radeberg, VEB;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 800 x 305 x 340 mm / 31.5 x 12 x 13.4 inch
Notes

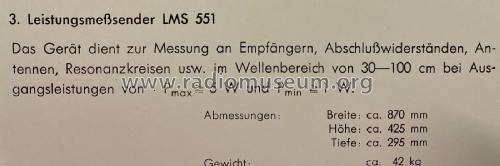

Dezimeterwellen-Meßsender nach dem Topfkreisprinzip; Wellenlängen von 30 bis 100 cm.


Net weight (2.2 lb = 1 kg) 41.5 kg / 91 lb 6.6 oz (91.41 lb)
Mentioned in Deutsche Funk-Technik (Deutsche Funktechnik) [DDR] (1953, Heft 9, Seite 267)

Model page created by Michael Mischke. See "Data change" for further contributors.
