• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6394

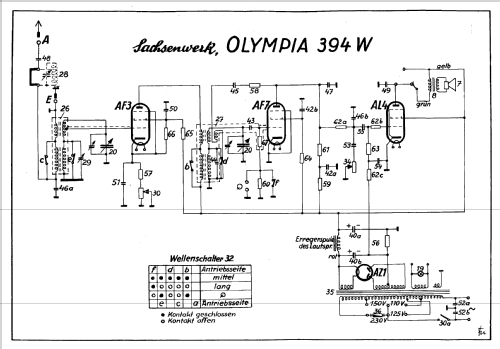

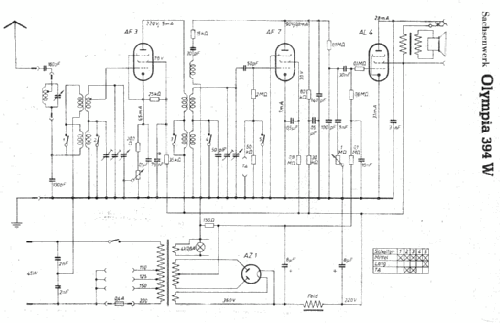

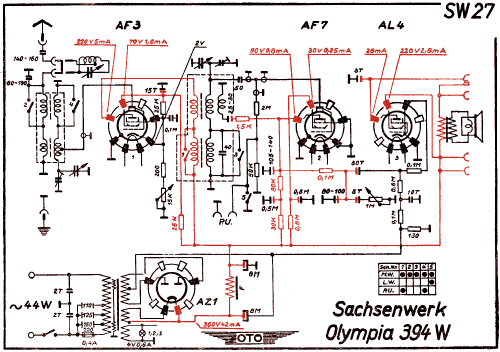

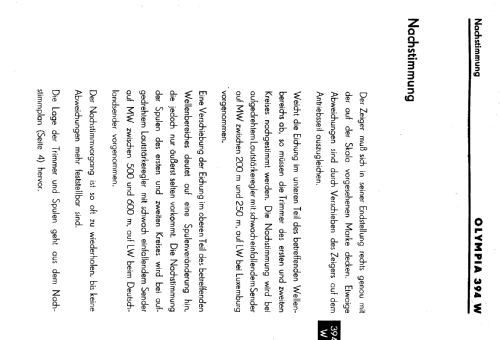

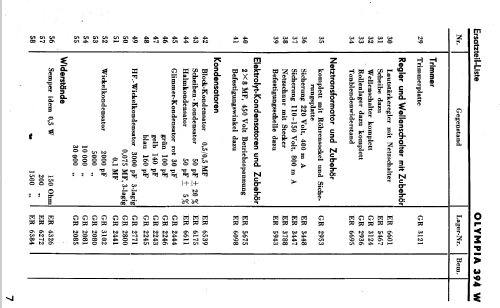

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AF3 AF7 AL4 AZ1

• Main principle
• TRF without regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

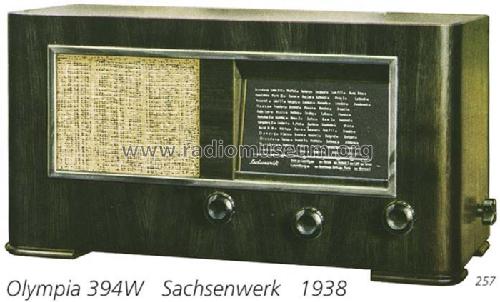

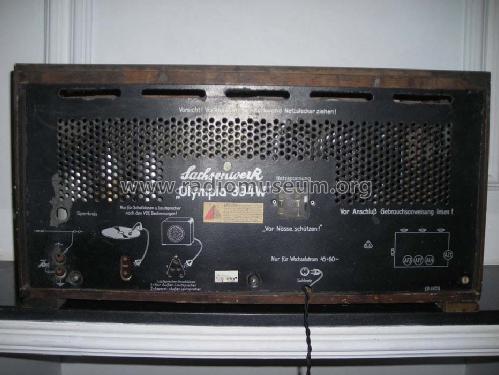

• Model: Olympia 394W - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 318 x 272 mm / 24.8 x 12.5 x 10.7 inch

• Net weight (2.2 lb = 1 kg)
• 13.3 kg / 29 lb 4.7 oz (29.295 lb)

• Price in first year of sale
• 178.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference

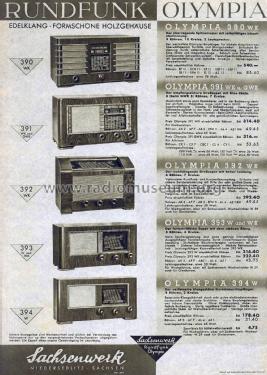

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 168 models, 144 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
