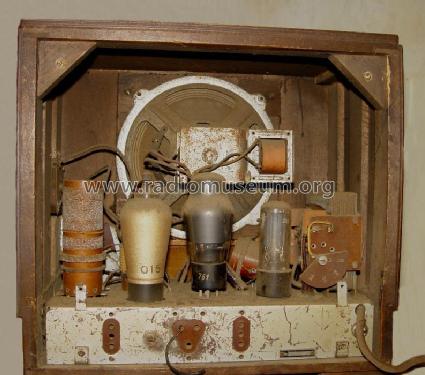

Olympia-Rekord W

• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6471

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1284 RENS1374d RGN1064

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Olympia-Rekord W - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 340 x 360 x 240 mm / 13.4 x 14.2 x 9.4 inch

• Price in first year of sale
• 150.00 RM

• Source of data
• Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Other Models

• Here you find 168 models, 143 with images and 105 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
