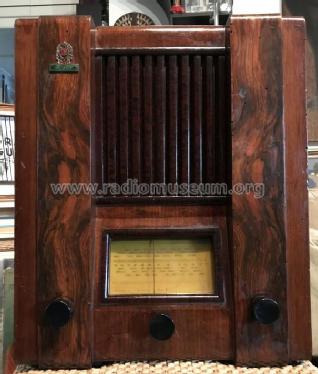

521; SAFAR Società (ID = 2308846) Radio
SAFAR Società: 521 [Radio] ID = 2308846 605x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model 521 soprammobile, SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano

Country:  Italy
Manufacturer / Brand:  SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 521 [soprammobile] - SAFAR Società Anonima
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 360 x 440 x 300 mm / 14.2 x 17.3 x 11.8 inch
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Guida Pratica Antique Radio III (2000) (per il mod. INA)

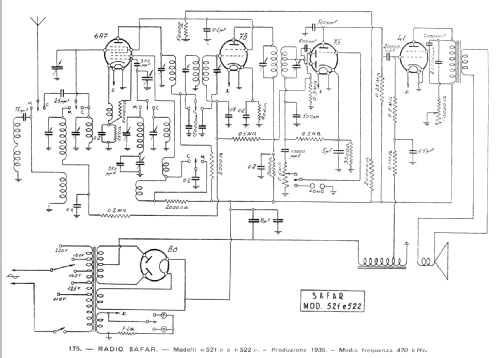

Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from SAFAR (Società Anonima Fabbricazione Apparecchi Radiofonici); Milano
Here you find 117 models, 75 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SAFAR Società: 521
Threads: 1 | Posts: 1
Hits: 1804     Replies: 0
safar: 521;
Antonio Maida
22.Jun.07
  1 Nel 1935 la società di Assicurazioni INA, dava, a chi sottosciveva una polizza vita, una radio SAFAR mod. 521. Queste radio. invece di avere il solito marchio SAFAR in alluminio traforato, riportavano un marchio in metallo smaltato (vedi foto)
