• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99486

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 375 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org

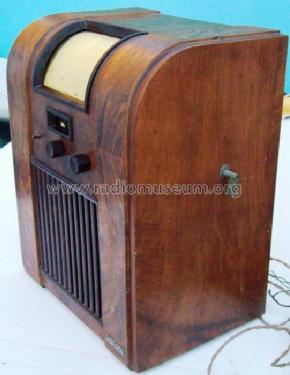

  • Model: 52 - SAFAR Società Anonima
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 360 x 440 x 230 mm / 14.2 x 17.3 x 9.1 inch
  • Notes
  • Indicatore ottico di sintonia.
    Controllo di tono. Ingresso per giradischi.

  • Mentioned in
  • A. Battocchio, La bella radio, Mosè Edizioni
  • Literature/Schematics (1)
  • -- Schematic
  • Literature/Schematics (2)
  • -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
