• Year
  • 1939 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 106356

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

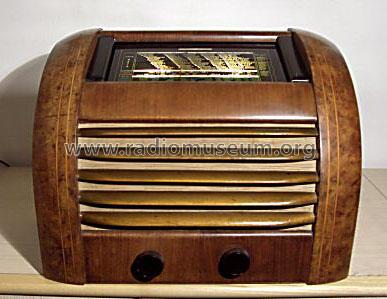

  • Model: 535 - SAFAR Società Anonima
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 320 x 230 mm / 16.5 x 12.6 x 9.1 inch
  • Notes
  • Controllo di tono a 3 posizioni. Ingresso per giradischi.

  • Source of data
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)
  • Literature/Schematics (2)
  • Il Radio Libro, (Ravalico) 6a edizione 1942
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
