• Year
  • 1939–1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82564

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-275 Volt

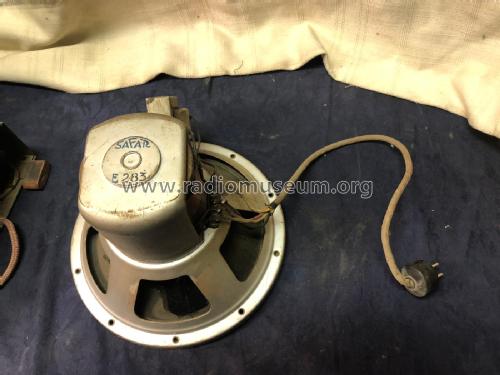

  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

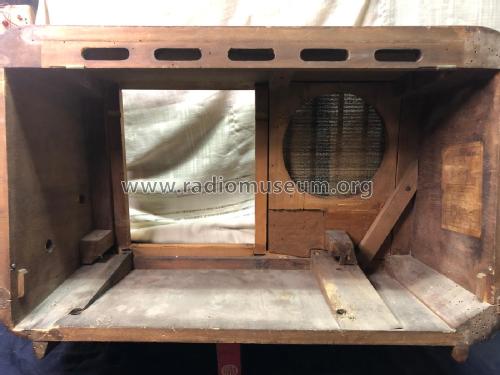

  • Material
  • Wooden case
  • from Radiomuseum.org

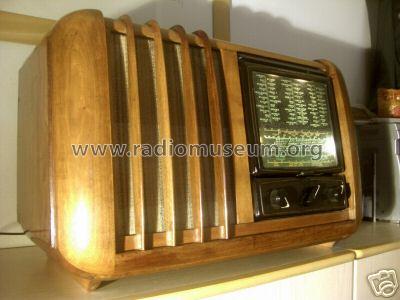

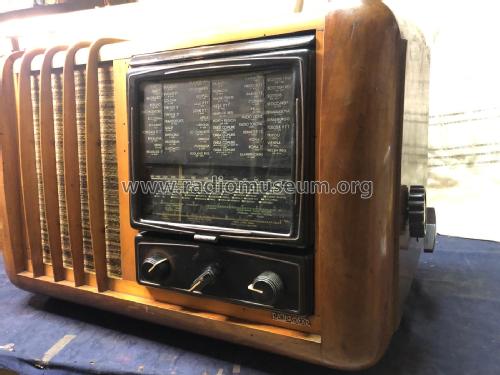

  • Model: 543 - SAFAR Società Anonima
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Controllo di tono.

  • Mentioned in
  • -- Schematic
  • Literature/Schematics (1)
  • -- Schematic (Il Radio Libro D.E. Ravalico, VI edizione - Hoepli – 1942)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
