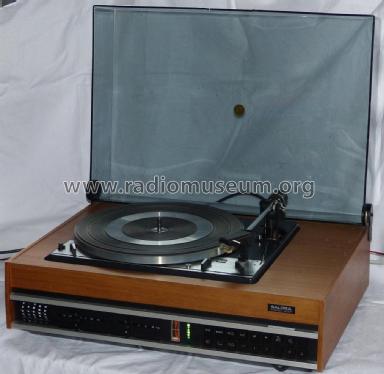

Hi-Fi Stereo 2001

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219676) Radio

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219677) Radio
Hi-Fi Stereo 2001; Salora; Salo (ID = 2219706) Radio Hi-Fi Stereo 2001; Salora; Salo (ID = 2219720) Radio

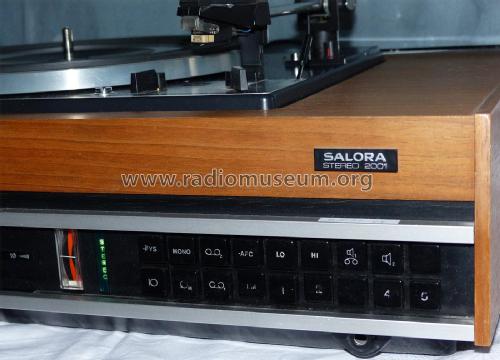

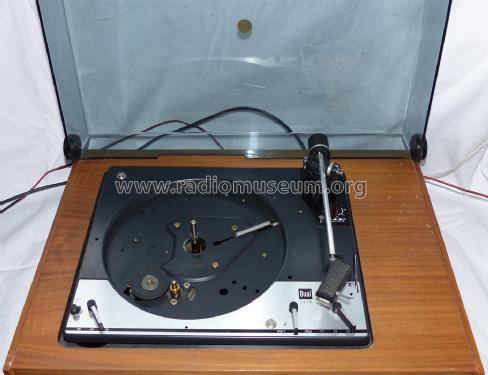

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219721) Radio Hi-Fi Stereo 2001; Salora; Salo (ID = 2219724) Radio

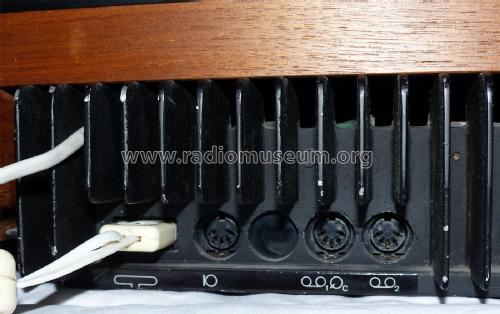

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219725) Radio Hi-Fi Stereo 2001; Salora; Salo (ID = 2219727) Radio

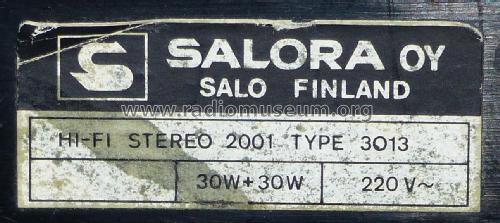

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219728) Radio Hi-Fi Stereo 2001; Salora; Salo (ID = 2219729) Radio

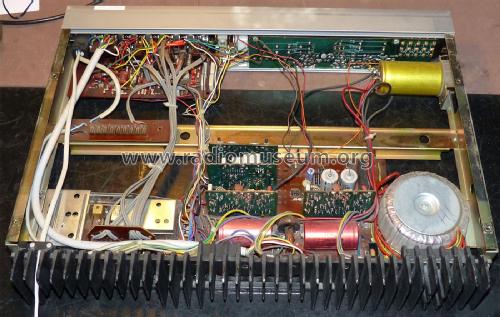

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219814) Radio Hi-Fi Stereo 2001; Salora; Salo (ID = 2219817) Radio
Use red slider bar for more.

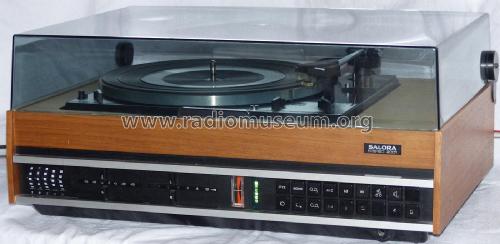

Hi-Fi Stereo 2001; Salora; Salo (ID = 2219706) Radio
Salora; Salo: Hi-Fi Stereo 2001 [Radio] ID = 2219706 1400x685
Select picture or schematic to display from thumbnails on the right and click for download.

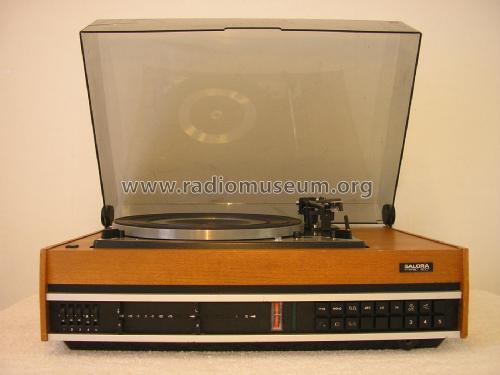

For model Hi-Fi Stereo 2001, Salora; Salo:
FM-Radio und Plattenwechsler Dual 1216

Country:  Finland
Manufacturer / Brand:  Salora; Salo
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 49:
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt

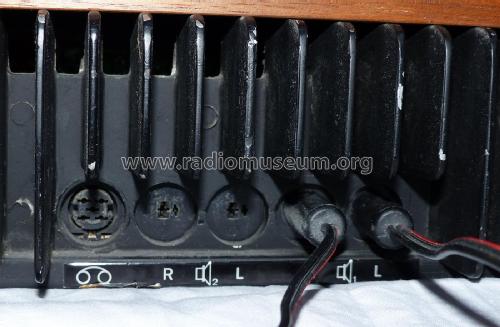

Loudspeaker - This model requires external speaker(s).
Power out 60 W (undistorted)
from Radiomuseum.org Model: Hi-Fi Stereo 2001 - Salora; Salo
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 493 x 215 x 360 mm / 19.4 x 8.5 x 14.2 inch
Notes

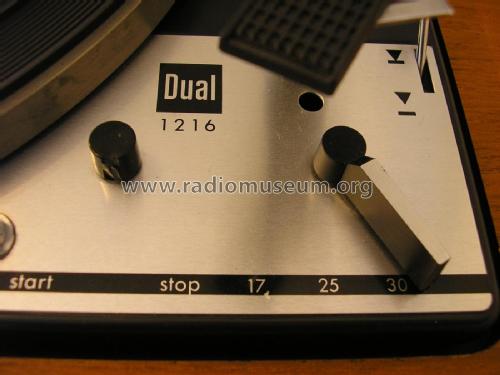

Same technical data as Salora Hi-Fi Stereo 2000. Record changer Dual 1216.

FM range 87 to 108 MHz.

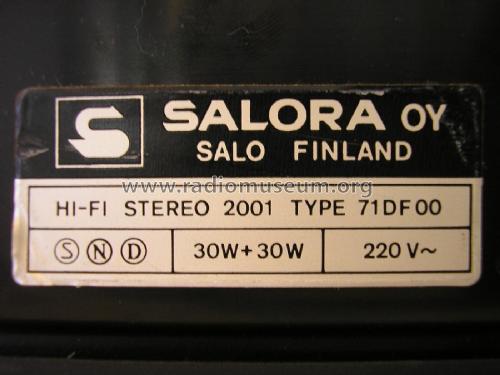

Ouput power 2 x 30 W at 4 ohms DIN 45500, 2 x 21 W at 8 ohms.

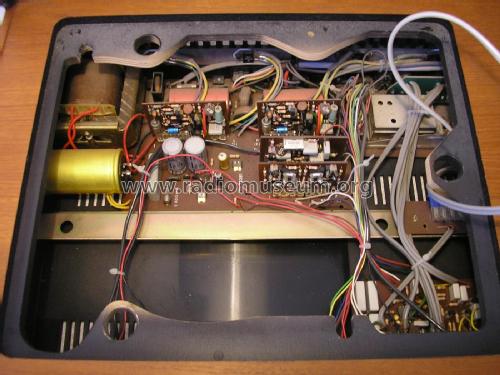

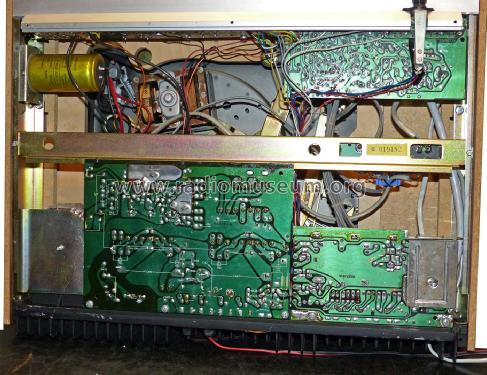

49 transistors (2 MOSFET, 1 FET bipolar), 22 diodes, 3 ICs.

Source of data -- Original-techn. papers.
Mentioned in -- Original prospect or advert

Model page created by Eero Ukkola. See "Data change" for further contributors.
