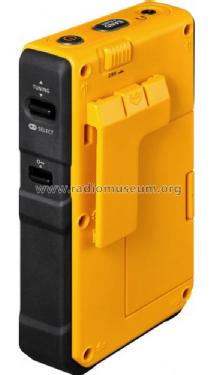

FM Stereo / AM Digital Receiver DT-800

The Taiwan model variant DT-800 shares a common design with the U.S. model (the AM / FM / WX DT-800), the European model (the Pocket 800 DT-800), and the Chinese model (DT-800C).

Despite the four model variants sharing a common set of features, each one has unique features suited to the target market.

Main specifications for the Taiwan model:

• Cabinet colors: Initially Yellow, later production Back and White colors
• Receiver bands:
  • FM-RDS: Selectable between
    • 87-108 MHz
    • 76-108 MHz
    • 64-108 MHz
    • 76-90 MHz
    • Tuning steps: 100 kHz, 50 kHz, 10 kHz fine tuning, selectable
    • Radio station name with RDS service
  • AM: Selectable between
    • 522-1710 kHz (9k tuning steps, 1 kHz fine tuning)
    • 520-1710 kHz (10k tuning steps, 1 kHz fine tuning)
• 40 Memory Preset Stations (20 FM, 20 AM)
• Manual and Auto scan with ATS/APS
• Wide/Narrow Bandwith on AM and FM
• DSP Soft-Mute ON or OFF, selectable
• Clock with Alarm (Buzzer) and Sleep timer
  • Auto clock sync with RDS CT service
• Dynamic Bass Boost
• Battery level indicator
• Lock switch
• Stereo Earphone socket (FM)
• Built-in Speaker
• Run on penlight non-rechargeable AA batteries

This TW model variant is similar to the DT-800 European model, with the exception that it do not feature the  built-in USB charger port to run on Ni-MH rechargealble batteries, and therefore there is no Alkaline/Ni-MH switch inside the battery compartment.

Please see additional model variants and technical details here: DT-800C
