Hi-Mood

Hi-Mood ; Sansei Electronics (ID = 621986) Radio Hi-Mood ; Sansei Electronics (ID = 621987) Radio
Hi-Mood ; Sansei Electronics (ID = 621988) Radio Hi-Mood ; Sansei Electronics (ID = 621989) Radio
Hi-Mood ; Sansei Electronics (ID = 621990) Radio Hi-Mood ; Sansei Electronics (ID = 1393763) Radio
Hi-Mood ; Sansei Electronics (ID = 1393764) Radio Hi-Mood ; Sansei Electronics (ID = 1393765) Radio
Hi-Mood ; Sansei Electronics (ID = 1393766) Radio Hi-Mood ; Sansei Electronics (ID = 1393767) Radio
Use red slider bar for more.

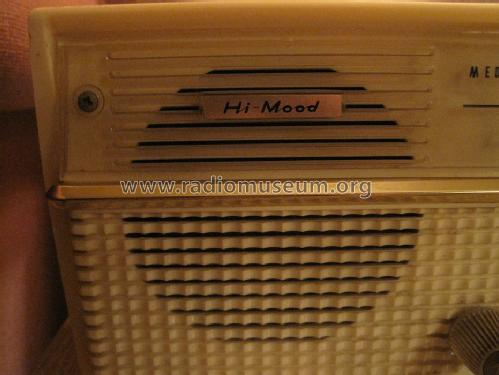

Hi-Mood ; Sansei Electronics (ID = 621986) Radio
Sansei Electronics: Hi-Mood [Radio] ID = 621986 649x274
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Mood, Sansei Electronics Corp (SEC).; Tokyo

Country:  Japan
Manufacturer / Brand:  Sansei Electronics Corp (SEC).; Tokyo
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BA6 17EW8 or 12DT8 12BE6 12AV6 12BA6 12BA6 35GL6
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 230 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Hi-Mood - Sansei Electronics Corp SEC.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 150 x 140 x 135 mm / 5.9 x 5.5 x 5.3 inch
Notes 7 Tubes plus 2 Diodes.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices

Model page created by Jürgen Bauch. See "Data change" for further contributors.



All listed radios etc. from Sansei Electronics Corp (SEC).; Tokyo
Here you find 14 models, 12 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
