Six Transistor Portable 6C-19

Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 700066) Radio

Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 895651) Radio

Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 1684671) Radio
Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 472025) Radio Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 472028) Radio
Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 472026) Radio Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 472027) Radio

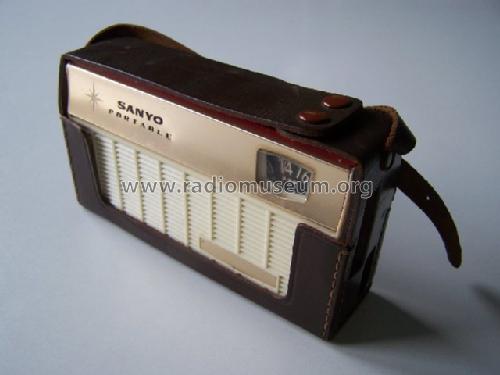

Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 721763) Radio Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 721764) Radio
Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 768694) Radio Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 2337843) Radio

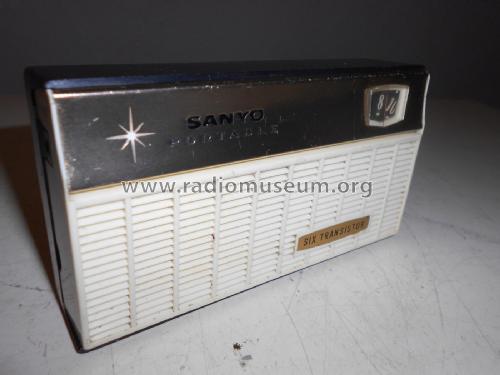

Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 2337844) Radio Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 2337845) Radio
Use red slider bar for more.
Six Transistor Portable 6C-19; Sanyo Electric Co. (ID = 472025) Radio
Sanyo Electric Co.: Six Transistor Portable 6C-19 [Radio] ID = 472025 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor Portable 6C-19, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA203 or. 2SA182 2SA202 or. 2SA180 2SA197 or. 2SA198 2SB185 2SB187 2SB187 1N60
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Six Transistor Portable 6C-19 - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 70 x 31 mm / 5.3 x 2.8 x 1.2 inch
Notes

Identical to Channel Master 6528.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Collectors' prices
Source of data -- Schematic

Model page created by Eckhard Wegner. See "Data change" for further contributors.
