• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 257303

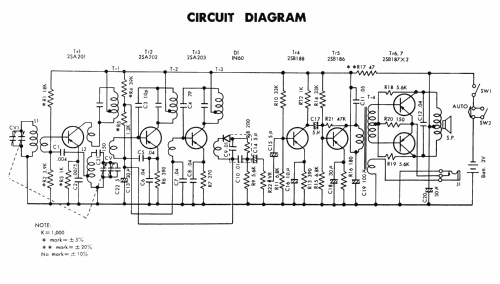

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Radio with other functions
  • Power type and voltage
  • Dry Batteries / AA: 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Coq d'Or 7CW-P20 - Sanyo Electric Co. Ltd.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 90 x 90 x 34 mm / 3.5 x 3.5 x 1.3 inch
  • Notes
  • Seven Transistor, One diode B/C automatic clock radio with 24 hour Seiko clock mechanism. Supplied complete with earphone. Price includes batteries.

  • Price in first year of sale
  • 40.95 AUS £
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
