• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140551

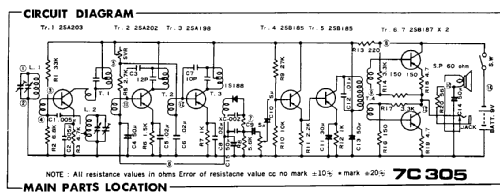

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SA203 2SA202 2SA198 2SB185 2SB185 2SB187 2SB187 1S188

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Power out
• 0.13 W (0.2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 7 Transistor 7C-305 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.5 x 4.5 x 1.3 inch / 64 x 114 x 33 mm

• Notes

• Sanyo 7C-305;

  Loudspeaker Impedance: 60 ohms

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
