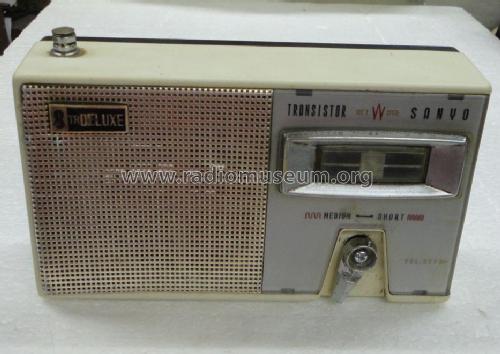

8 Transistor Deluxe All Wave 8S-P2

• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1959–1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 101567

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SA60 2SA53 2SA49 2SB54 2SB54 2SB54 2SB56 2SB56 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.15 W (0.2 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: 8 Transistor Deluxe All Wave 8S-P2 - Sanyo Electric Co. Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 156 x 89 x 42 mm / 6.1 x 3.5 x 1.7 inch

• Notes

• Plastique Blanc, dos Noir, grille HP chromee
  Gammes de frequences : MW 540 - 1600 kHz, SW 3.9 - 12 MHz.

  Alternative transistor types:
  2SA101, 2SA102, 2SA103, 2SB185, 2SB188, 2SB186, 2SB187, 2SB187.

  See also Channel Master models 6512 and 6514.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• External source of data
• Norman Smith Transistor Radios - collection personnelle

• Source of data
• -- Schematic

• Author
• Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
