8U-604A

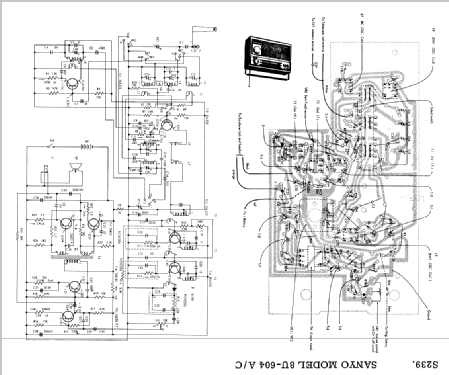

8U-604A; Sanyo Electric Co. (ID = 1684684) Radio
8U-604A; Sanyo Electric Co. (ID = 1436149) Radio 8U-604A; Sanyo Electric Co. (ID = 1436150) Radio
8U-604A; Sanyo Electric Co. (ID = 1436151) Radio 8U-604A; Sanyo Electric Co. (ID = 1436152) Radio
8U-604A; Sanyo Electric Co. (ID = 1436153) Radio 8U-604A; Sanyo Electric Co. (ID = 1436154) Radio

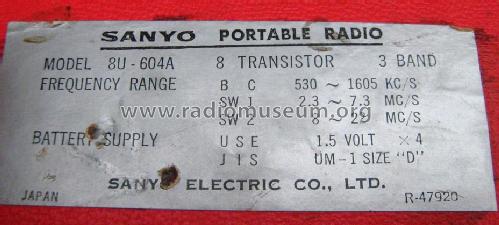

8U-604A; Sanyo Electric Co. (ID = 1436157) Radio 8U-604A; Sanyo Electric Co. (ID = 1436159) Radio
8U-604A; Sanyo Electric Co. (ID = 1436160) Radio
Use red slider bar for more.
8U-604A; Sanyo Electric Co. (ID = 1436149) Radio
Sanyo Electric Co.: 8U-604A [Radio] ID = 1436149 930x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model 8U-604A, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA222 2SA222 2SA322 2SA203 2SB185 2SB185 2SB22 2SB22
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.4 W (max.)
from Radiomuseum.org Model: 8U-604A - Sanyo Electric Co. Ltd.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 150 x 70 mm / 9.3 x 5.9 x 2.8 inch

Model page created by Daniel Rosha. See "Data change" for further contributors.
