All Wave Transistor 9 9S-P21

All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1684686) Radio

All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1714817) Radio
All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656166) Radio All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656167) Radio
All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656168) Radio All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656169) Radio
All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656170) Radio All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656172) Radio
All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1803287) Radio
Use red slider bar for more.
All Wave Transistor 9 9S-P21; Sanyo Electric Co. (ID = 1656166) Radio

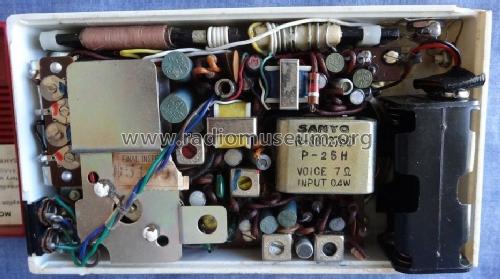

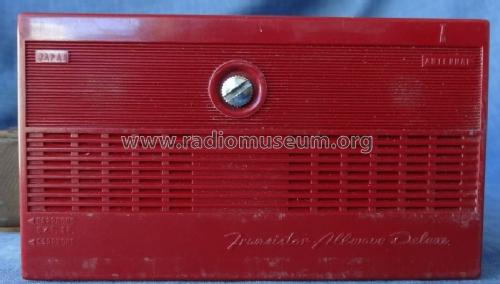

Sanyo Electric Co.: All Wave Transistor 9 9S-P21 [Radio] ID = 1656166 933x555

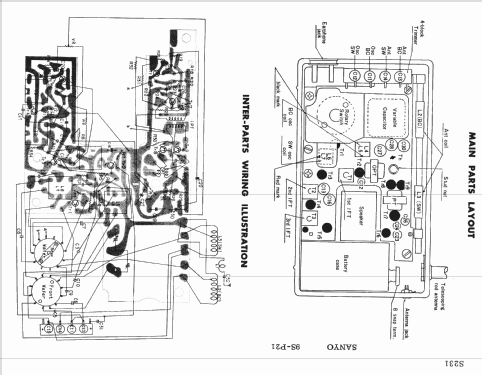

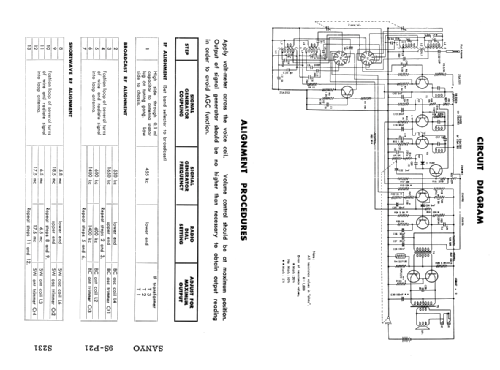

Select picture or schematic to display from thumbnails on the right and click for download.
For model All Wave Transistor 9 9S-P21, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Ebay auction by user treasure-chest-de 360929186916

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA221 2SA222 2SA202 or. 2SA180 2SA203 or. 2SA182 2SB185 2SB188 2SB185 2SB187 2SB187
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: All Wave Transistor 9 9S-P21 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6 x 3.5 x 2 inch / 152 x 89 x 51 mm
Notes Sanyo 2 Band Portable Radio All Wave Transistor 9 Model 9S-P21.
Tuning Range 535 - 1605 kc, 6 - 18 Mc.
Speaker 7 ohms, 0.4 watt.
Source of data -- Schematic

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
