For model 3 Band Receiver RP 7160 OIRT - HU, Sanyo Electric Co. Ltd.; Moriguchi (Osaka):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1980–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240; 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: 3 Band Receiver RP 7160 [OIRT - HU] - Sanyo Electric Co. Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 116 x 55 mm / 7.9 x 4.6 x 2.2 inch
Notes

8 Transistor & 1 IC.

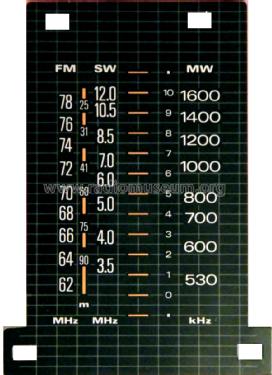

FM-OIRT.
See also the CCIR version Sanyo RP 7160.

Net weight (2.2 lb = 1 kg) 0.850 kg / 1 lb 14 oz (1.872 lb)
Price in first year of sale 1'640.00 HUF

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
