- Country
- Spain
- Manufacturer / Brand
- Sanyo España, Eurotrón, Ainsa; Huesca (HU) y Tudela (NA)
- Year
- 1971 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319689

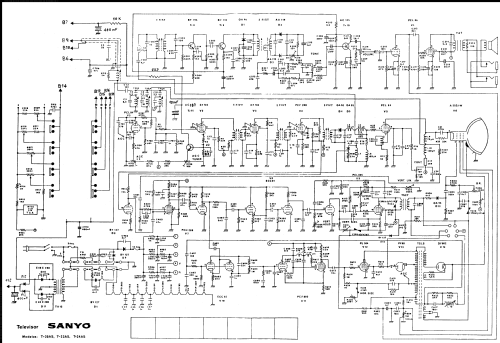

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- EF183 EF184 PCF200 PCL84 PCH200 ECC81 PCL805 ECC82 PCF802 PL504 PY88 DY802 PCL86 A59-23W
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 125; 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

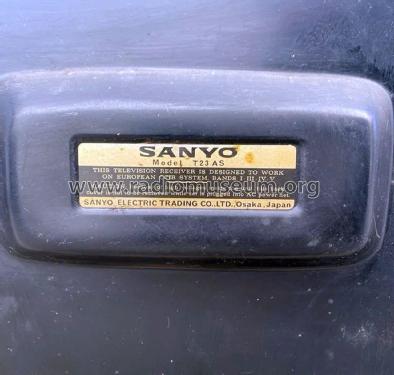

- Model: T-23AS - Sanyo España, Eurotrón, Ainsa;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Sanyo España, S.A. T-23AS
TV B/N 23" con VHF/UHF.
No están contados los elementos del sintonizador.
