6 Transistor TH-632

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Year
1972 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
122973

Schematics

6 Transistor TH-632; Sanyo Electric Co. (ID = 2685508) Radio — Sanyo Electric Co. 6 Transistor TH-632 (3)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2457128) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)
from my collection

6 Transistor TH-632; Sanyo Electric Co. (ID = 1830861) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1830860) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 775111) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1830858) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2134695) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2134696) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2134698) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2134697) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 775108) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 775110) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 775109) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 762525) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 401183) Radio — Sanyo Electric Co. 6 Transistor TH-632 (2)

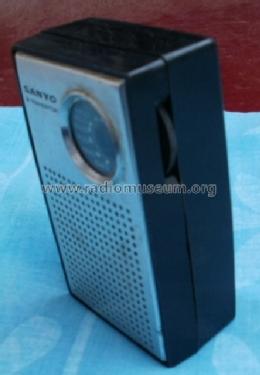

6 Transistor TH-632; Sanyo Electric Co. (ID = 762523) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 762524) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1234686) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1301603) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1317585) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1437929) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1437930) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1437931) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 1650863) Radio — Sanyo Electric Co. 6 Transistor TH-632 (2)
Sanyo Sales Brochure

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934230) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934231) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934232) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934233) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934234) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934235) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

6 Transistor TH-632; Sanyo Electric Co. (ID = 2934236) Radio — Sanyo Electric Co. 6 Transistor TH-632 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
2SA203 2SA202 2SA201 2SB187 2SB187 2SB186

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / AAA: 2 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

Power out
0.2 W (max.)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 6 Transistor TH-632 - Sanyo Electric Co. Ltd.;

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
62 x 150 x 35 mm / 2.4 x 5.9 x 1.4 inch

Notes
Sanyo TH632 6 transistor pocket radios supplied in various colours. Gross weight in original packing 0,240 kg. Jack for earphones.

Net weight (2.2 lb = 1 kg)
0.2 kg / 0 lb 7 oz (0.441 lb)

Literature/Schematics (1)
Radio es Televizio Vevö keszülekek 1972-75

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
