• Country
• Soviet Union

• Manufacturer / Brand
• Sarapoul Orjonikidze Radio Works

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 312011

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6И1П 6Х2П 6Н2П 6П14П 6Е1П 6Н3П 6К4П 6К4П

• Main principle
• Superheterodyne (common); ZF/IF 465/6500 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

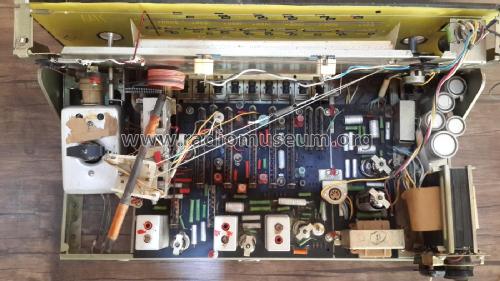

• Model: Урал-6 Ural-6 - Sarapoul Orjonikidze Radio

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 775 x 295 x 320 mm / 30.5 x 11.6 x 12.6 inch

• Notes

• FM: OIRT-band, 4,05 - 4,6 m

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Saeed Delavari. See "Data change" for further contributors.
