• Country
• Soviet Union

• Manufacturer / Brand
• Sarapoul Orjonikidze Radio Works

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200132

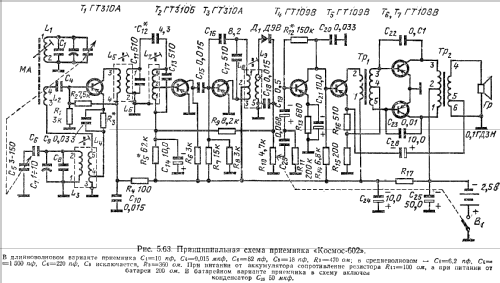

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 2 x 1,2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Kosmos {Космос}-602 - Sarapoul Orjonikidze Radio

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 70 x 30 mm / 2.4 x 2.8 x 1.2 inch

• Notes
• Das Gerät ist offensichtlich die in Russland vertriebene Variante des "Novel 2".
  For export - model name NOVEL-2. Possible MW or LW variants.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
