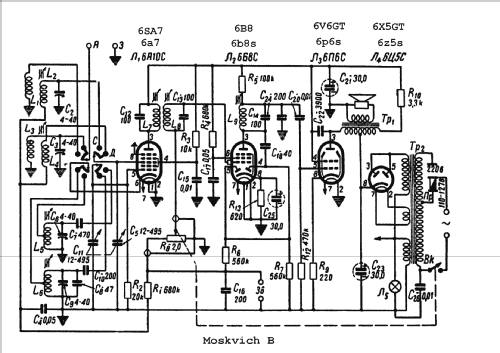

Select picture or schematic to display from thumbnails on the right and click for download.
For model Moskvič - Москвич V - В variant 4, Sarapoul Orjonikidze Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Sarapoul Orjonikidze Radio Works
Year: 1951–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6А7 6Б8С 6П6С 6Ц5С
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Moskvič - Москвич V - В [variant 4] - Sarapoul Orjonikidze Radio
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 290 x 185 x 140 mm / 11.4 x 7.3 x 5.5 inch
Notes There was three variants schemat modernize with 3 tubes radio "Moskvich-B" at first time(see "Moskvich-B" variant- "3 tubes") and this variant, with 4 tubes, is fourth. First tube 6a10s, later changed to 6a7.

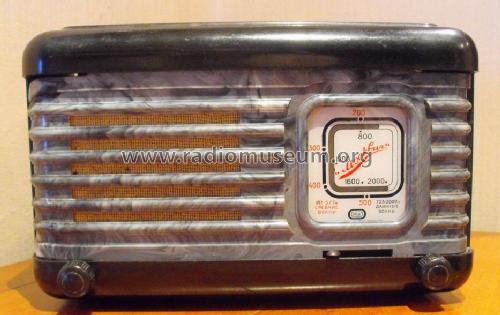

One model name and same case design at all time. In time varied picture on scale glass.
Radio set "Moskvich B" at first was named "Vesna"(BECHA in russian). And first letter "B" stay in next model name. Model was manufaktured in 5 Russia factories, most popular radio. Moskvich B producibled in: (see in RMorg): Voronezh Elektrosignal Works, ARZ,Moscow Krasny Oktyabr Works, Moscow Radio Plant(later-Moscow IU TEMP).
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices
Mentioned in E.A.Levitin radiovesciatelnyje prijomniki. Moscow 1960.

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
