Orlyonok 605

Orlyonok 605; Sarapoul Orjonikidze (ID = 1404556) Radio Orlyonok 605; Sarapoul Orjonikidze (ID = 1405203) Radio
Orlyonok 605; Sarapoul Orjonikidze (ID = 1405204) Radio Orlyonok 605; Sarapoul Orjonikidze (ID = 1405205) Radio
Orlyonok 605; Sarapoul Orjonikidze (ID = 1405206) Radio Orlyonok 605; Sarapoul Orjonikidze (ID = 1658135) Radio

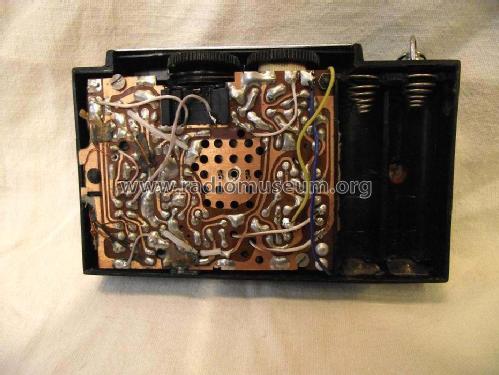

Orlyonok 605; Sarapoul Orjonikidze (ID = 1658142) Radio
Use red slider bar for more.
Orlyonok 605; Sarapoul Orjonikidze (ID = 1404556) Radio
Sarapoul Orjonikidze: Orlyonok 605 [Radio] ID = 1404556 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orlyonok 605, Sarapoul Orjonikidze Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Sarapoul Orjonikidze Radio Works
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.04 W (unknown quality)
from Radiomuseum.org Model: Orlyonok 605 - Sarapoul Orjonikidze Radio
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 62 x 105 x 28 mm / 2.4 x 4.1 x 1.1 inch
Mentioned in -- Original-techn. papers.

Model page created by Jürgen Moritz. See "Data change" for further contributors.
