493

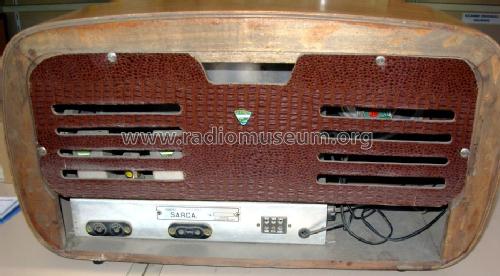

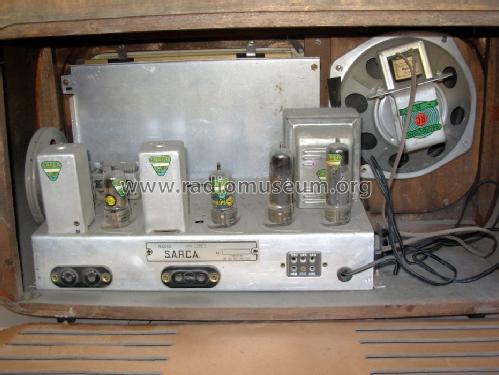

493; SARCA SARKA; Milano (ID = 1347171) Radio 493; SARCA SARKA; Milano (ID = 1347172) Radio
493; SARCA SARKA; Milano (ID = 1347173) Radio 493; SARCA SARKA; Milano (ID = 1347174) Radio
493; SARCA SARKA; Milano (ID = 1347175) Radio
Use red slider bar for more.

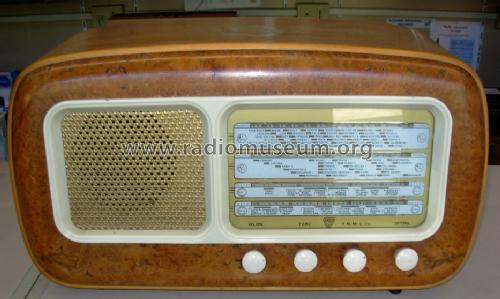

493; SARCA SARKA; Milano (ID = 1347171) Radio
SARCA SARKA; Milano: 493 [Radio] ID = 1347171 933x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model 493, SARCA (SARKA); Milano:
Radio Sarca Serie 493.
Per cortesia del sig. Pierluigi Sollecito

Country:  Italy
Manufacturer / Brand:  SARCA (SARKA); Milano
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details

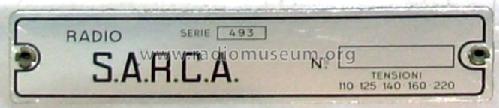

Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 493 - SARCA SARKA; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

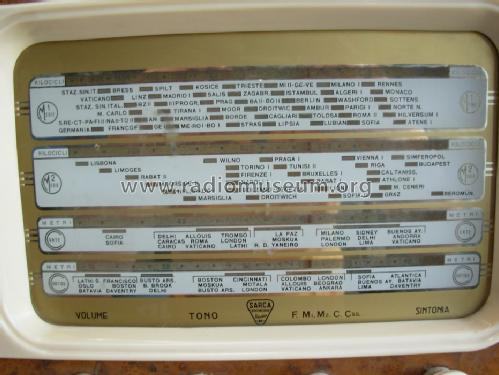

Sarca Serie 493. Sotto la medesima serie sono stati prodotti più varianti, che differivano nell'estetica di mobile e scala parlante, e per la presenza o meno dell'occhio magico.
Gamme d'onda: 2 medie, corte, cortissime.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
