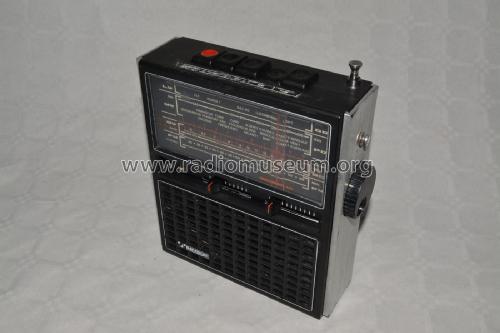

Multiband 401

Savage; (where?)

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225520

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Multiband 401 - Savage; where?
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 200 x 175 x 60 mm / 7.9 x 6.9 x 2.4 inch
  • Notes
  • Wavebands:
    LW/GO 150 - 250 kHz
    MW/PO 520 - 1600 kHz
    SW/OC 49 to 19 m.
    FM 88 - 108 MHz.
    Oval loudspeaker 128 mm x 76 mm.
    Linear
    slider controls for volume and tone. Power button. Ear and tape jacks.
    Ferrite 11 cm. Mains/battery switch in the battery compartment. The device has many details in common with the model Grundig City-Boy 700.

  • Net weight (2.2 lb = 1 kg)
  • 1.350 kg / 2 lb 15.6 oz (2.974 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
