OS52

OS52; Savigliano, Officine (ID = 207863) Radio

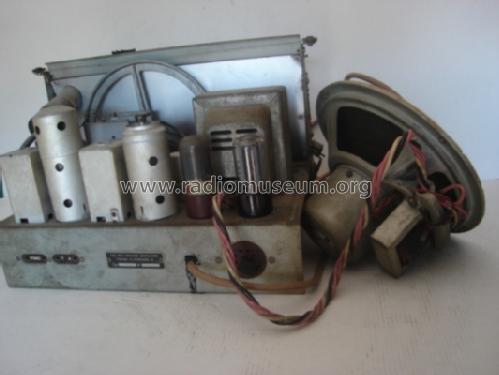

OS52; Savigliano, Officine (ID = 1368271) Radio OS52; Savigliano, Officine (ID = 347421) Radio
OS52; Savigliano, Officine (ID = 419494) Radio OS52; Savigliano, Officine (ID = 347420) Radio

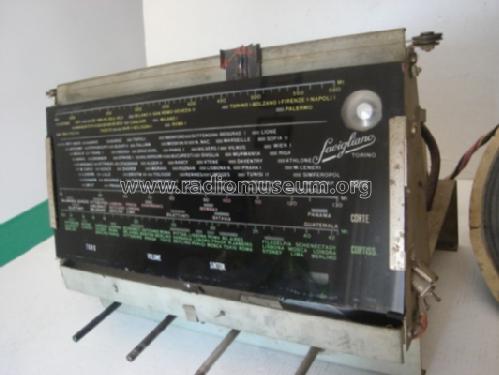

OS52; Savigliano, Officine (ID = 1368273) Radio OS52; Savigliano, Officine (ID = 347422) Radio

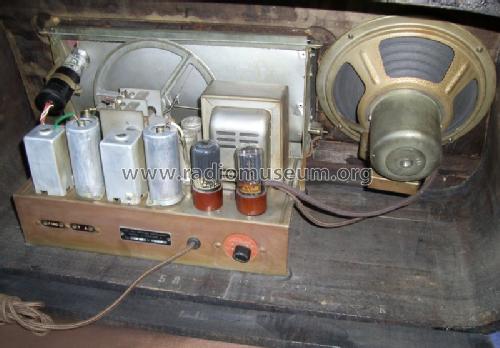

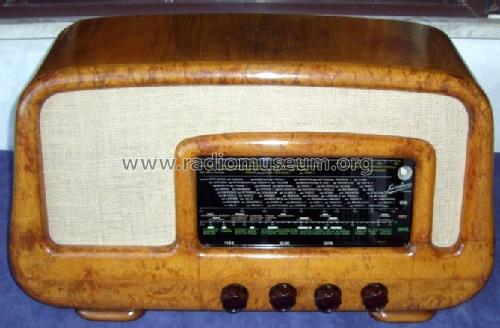

OS52; Savigliano, Officine (ID = 419493) Radio OS52; Savigliano, Officine (ID = 419495) Radio

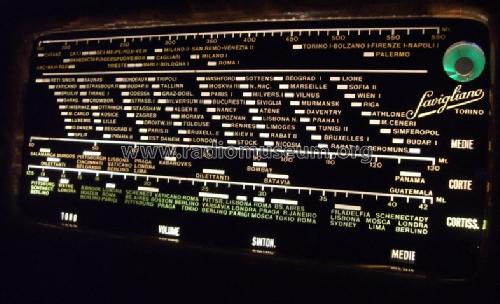

OS52; Savigliano, Officine (ID = 419496) Radio OS52; Savigliano, Officine (ID = 419497) Radio
Use red slider bar for more.

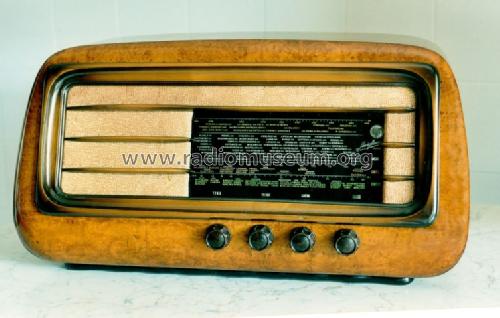

OS52; Savigliano, Officine (ID = 1368271) Radio
Savigliano, Officine: OS52 [Radio] ID = 1368271 753x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model OS52, Savigliano, Officine di, SA; Savigliano (CN)

Country:  Italy
Manufacturer / Brand:  Savigliano, Officine di, SA; Savigliano (CN)
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6TE8GT 6K7G 6Q7G 6V6G 6E5 5Y3G
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: OS52 - Savigliano, Officine di, SA;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 280 x 380 mm / 27.6 x 11 x 15 inch
Notes Diverse varianti di mobile.
Several case variants.
Price in first year of sale 57'000.00 LIT
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 153)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. S5)
Literature/Schematics (2) -- Original prospect or advert (Elettronica & Televisione, anno IV num. 4, luglio 1949)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Savigliano, Officine di, SA; Savigliano (CN)
Here you find 67 models, 52 with images and 52 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
