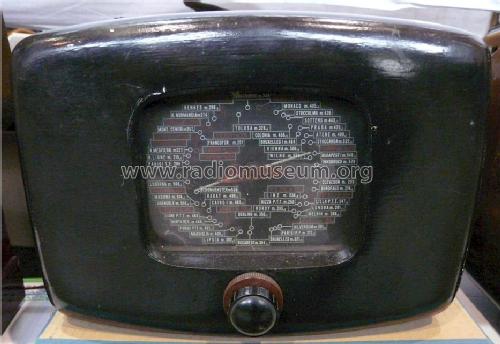

108; Savigliano, Officine (ID = 1214974) Radio 108; Savigliano, Officine (ID = 1214975) Radio
108; Savigliano, Officine (ID = 1214976) Radio 108; Savigliano, Officine (ID = 1214977) Radio
108; Savigliano, Officine (ID = 1214978) Radio 108; Savigliano, Officine (ID = 1839811) Radio
108; Savigliano, Officine (ID = 1839813) Radio 108; Savigliano, Officine (ID = 2614702) Radio
Use red slider bar for more.
108; Savigliano, Officine (ID = 152878) Radio
Savigliano, Officine: 108 [Radio] ID = 152878 637x508
Select picture or schematic to display from thumbnails on the right and click for download.
For model 108, Savigliano, Officine di, SA; Savigliano (CN)

Country:  Italy
Manufacturer / Brand:  Savigliano, Officine di, SA; Savigliano (CN)
Year: 1940–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A8G 6B8G 6F6G 6X5
Main principle Superheterodyne (common); Reflex
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 108 - Savigliano, Officine di, SA;
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 180 x 190 mm / 10.6 x 7.1 x 7.5 inch
Notes Variante di mobile anno 1942 con forme meno arrotondate.
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Il Radio Libro, (Ravalico) 6a edizione 1942
Literature/Schematics (2) L'antenna, n.17, settembre 1940

Model page created by Rino Ferro † 2008. See "Data change" for further contributors.



All listed radios etc. from Savigliano, Officine di, SA; Savigliano (CN)
Here you find 67 models, 52 with images and 52 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
