• Country
• Belgium

• Manufacturer / Brand
• SBR Société Belge Radio-Electrique, Bruxelles

• Year
• 1972 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 235659

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC178 BC149 2N4291 MC150 MC140 BC178 BC149 2N4291 MC150 MC140

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

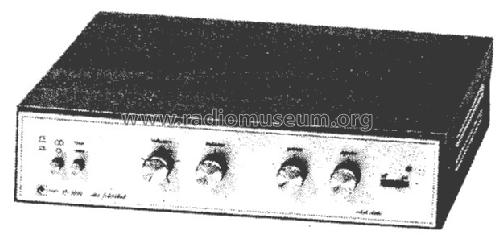

• Model: Amplifier AS2010 - SBR Société Belge Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 320 x 75 x 245 mm / 12.6 x 3 x 9.6 inch

• Notes

• Stereo versterker 2 x 3 Watt into 16 Ohm.



• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
