• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 31087

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110-130; 220-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org

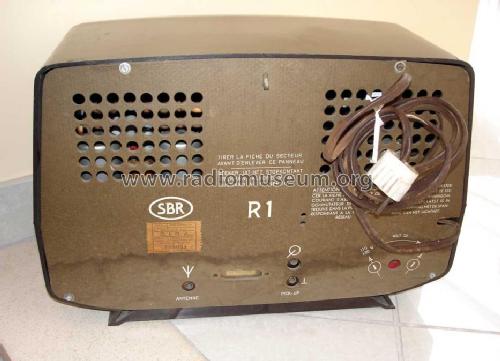

  • Model: R1 - SBR Société Belge Radio-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 350 x 240 x 180 mm / 13.8 x 9.4 x 7.1 inch
  • Notes
  • Small receiver in moulded cabinet, two colors: brown/creme or ivory.

    • selenium rectifier
    • 4 push-buttons
    • elliptical speaker
    • built-in ferrite antenna
    • pick-up connector
  • Price in first year of sale
  • 2,350.00 BEF
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Bruno Brasseur. See "Data change" for further contributors.
