- Country
- Belgium
- Manufacturer / Brand
- SBR Société Belge Radio-Electrique, Bruxelles
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 243986
Original brochure
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RP5 - SBR Société Belge Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 340 x 350 mm / 23.2 x 13.4 x 13.8 inch
- Notes
-
Phono-radio combination with FM.

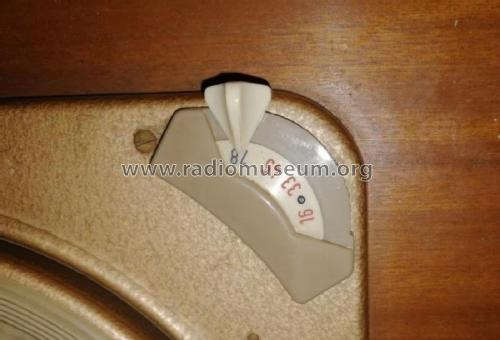

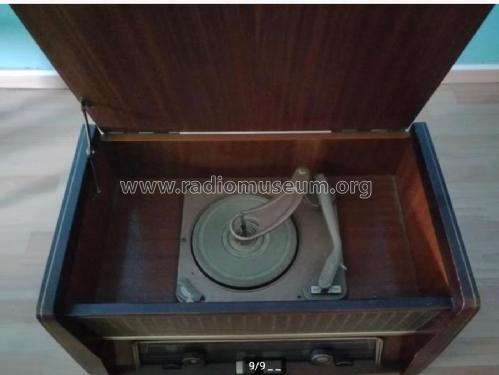

- automatic record changer with 4 speeds
- double tone controls
- separated FM dial
- stereophonic sound with multi-speaker setup
- "gyrodetector"
- built-in FM antenna
- connector for 2. speaker
- Price in first year of sale
- 7,950.00 BEF
- Mentioned in
- -- Original prospect or advert
