Super Ondolina 632A2 MPT4

Super Ondolina 632A2; SBR Société Belge (ID = 1367112) Radio Super Ondolina 632A2; SBR Société Belge (ID = 1451585) Radio
Use red slider bar for more.

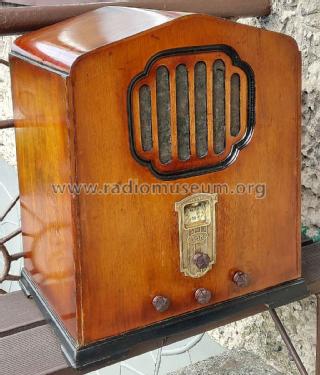

Super Ondolina 632A2; SBR Société Belge (ID = 1367112) Radio
SBR Société Belge: Super Ondolina 632A2 [Radio] ID = 1367112 427x520
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Ondolina 632A2 MPT4, SBR Société Belge Radio-Electrique, Bruxelles:
With kind permission of SBR museum Belgium 'eeuwfeestpaleisje'

Country:  Belgium
Manufacturer / Brand:  SBR Société Belge Radio-Electrique, Bruxelles
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: MS4B or E452T MS4B or E452T MS4B or E452T MS4B or E452T MHL4 MPT4 U10 or 506
Main principle Superhet with RF-stage; 2 AF stage(s); Anode bend detection
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 140; 220; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Super Ondolina 632A2 [MPT4] - SBR Société Belge Radio-
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes
  • This radio can work with loop antenna 632 as well as a simple wire antenna.
  • Supplement for an optional loop antenna: 450 BFr.
  • There are 2 generations with different tubes: see model with PT4 tube.
  • SBR produced the following models 632:
    • 632x1: table model without loudspeaker;
    • 632x2: table model with loudspeaker;
    • 632x3: luxury console;
    • 632x4: luxury console with pick-up;

where 'x' represents 'A' (AC mains) or 'C' (DC mains, 110 or 220V).

There is also a 632B1 model (battery).

Price in first year of sale 4'150.00 BFr

Model page created by Dirk Bladt. See "Data change" for further contributors.
