Topaze

Topaze ; Scarabee - Edouard (ID = 288853) Radio Topaze ; Scarabee - Edouard (ID = 288854) Radio
Topaze ; Scarabee - Edouard (ID = 288855) Radio Topaze ; Scarabee - Edouard (ID = 1688772) Radio

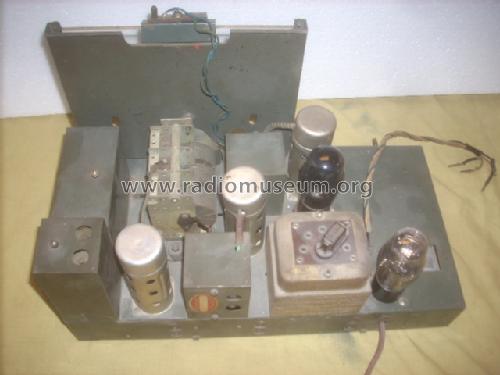

Topaze ; Scarabee - Edouard (ID = 1688774) Radio Topaze ; Scarabee - Edouard (ID = 1688777) Radio
Use red slider bar for more.
Topaze ; Scarabee - Edouard (ID = 288853) Radio
Scarabee - Edouard: Topaze [Radio] ID = 288853 636x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model Topaze, Scarabee - Edouard Binard, Bruxelles:
Eigenes Bild vom Kundengerät.

Country:  Belgium
Manufacturer / Brand:  Scarabee - Edouard Binard, Bruxelles
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 42 75 80 6D6
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line (AC, UC or DC not known) / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Topaze - Scarabee - Edouard Binard,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 565 x 350 x 230 mm / 22.2 x 13.8 x 9.1 inch
Price in first year of sale 1'950.00 BEF

Model page created by Georges Van Campenhout. See "Data change" for further contributors.



All listed radios etc. from Scarabee - Edouard Binard, Bruxelles
Here you find 14 models, 13 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
