Amigo T50K Automatik 46285, 46286

Amigo T50K Automatik; Schaub und Schaub- (ID = 39988) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39989) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39990) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39991) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39993) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39994) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39992) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 39995) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 2050735) Radio

Amigo T50K Automatik; Schaub und Schaub- (ID = 2050736) Radio
Amigo T50K Automatik; Schaub und Schaub- (ID = 780502) Radio Amigo T50K Automatik; Schaub und Schaub- (ID = 39987) Radio
Amigo T50K Automatik; Schaub und Schaub- (ID = 1943306) Radio Amigo T50K Automatik; Schaub und Schaub- (ID = 1943310) Radio
Use red slider bar for more.
Amigo T50K Automatik; Schaub und Schaub- (ID = 780502) Radio
Schaub und Schaub-: Amigo T50K Automatik [Radio] ID = 780502 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo T50K Automatik 46285, 46286, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF124 AF125 AF144 AF144 AF144 AC151 AC151 2G374 2G339 2G381
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Amigo T50K Automatik [46285, 46286] - Schaub und Schaub-Lorenz
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 180 x 105 mm / 10.8 x 7.1 x 4.1 inch
Notes Netzbetrieb (110/220 V) über Netzteil (25,- DM) möglich.
Gehäusefarben: 46285 = olivgrün, 46286 = havannabraun.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 310.00 DM
Collectors' prices
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb

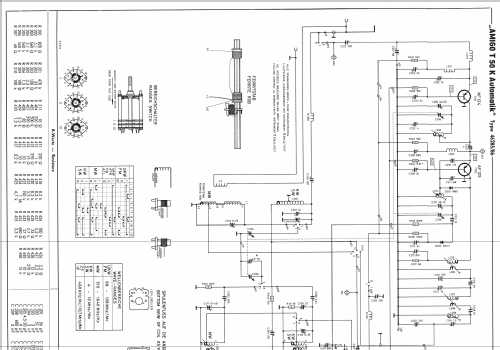

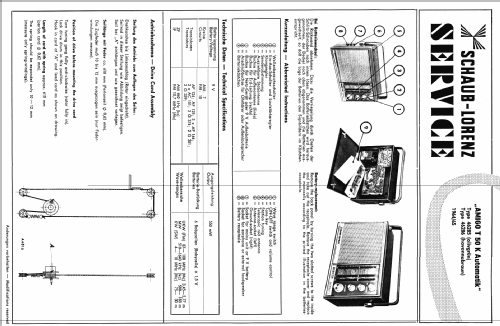

Literature/Schematics (1) -- Original-techn. papers.
