Schaub und Schaub-: Amigo HK 12104175 [Radio] ID = 1781879 1400x1129

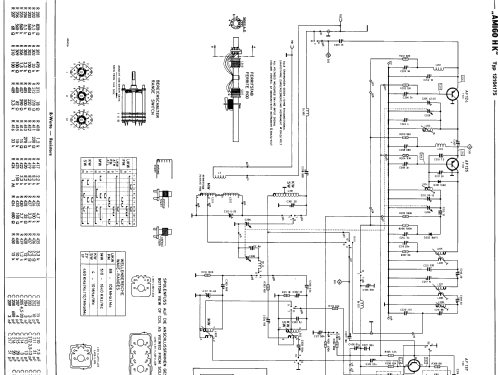

Select picture or schematic to display from thumbnails on the right and click for download.

For model Amigo HK 12104175, Schaub und Schaub-Lorenz

Country:

Germany

Manufacturer / Brand:

Schaub und Schaub-Lorenz

Year: 1965/1966

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

10: AF124 AF125 AF137 AF137 AF138 AC151 AC151 AC151 AC117 AC175

Main principle	Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits	7 AM circuit(s) 10 FM circuit(s)
Wave bands	Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage	Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out	0.5 W (unknown quality)
from Radiomuseum.org	Model: Amigo HK 12104175 - Schaub und Schaub-Lorenz

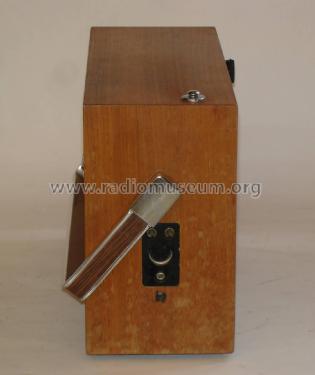

Material	Wooden case
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	272 x 180 x 102 mm / 10.7 x 7.1 x 4 inch
Notes	Bei Netzbetrieb NF-Ausgangsleistung = 2 W. Das Gerät ist in Nussbaum Natur. Zum Tausch der Batterien ist die Rückwand-Verriegelung durch Drehen der Schlitzschrauben nach innen zu öffnen. Empfangsbereiche: MW 510 - 1640 kHz (588 - 183 m), KW 4 - 10 MHz (75 - 30 m) und UKW (FM) 88 - 108 MHz (3.41 - 2.77 m). Siehe auch Modell Amigo HK 121041. Das Nachfolgemodell für 1966/67 heisst Amigo S K bei gleichem Wellenbereich und Amigo S L bei LW statt KW.
Net weight (2.2 lb = 1 kg)	2.5 kg / 5 lb 8.1 oz (5.507 lb)
External source of data	erb
Literature/Schematics (1)	-- Original-techn. papers.
