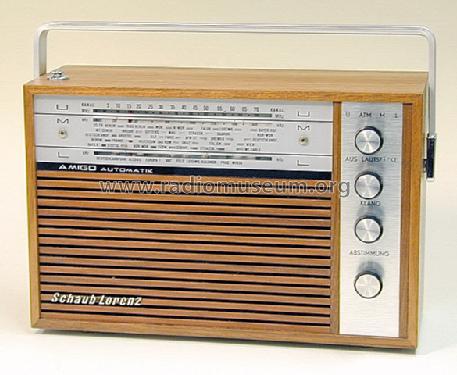

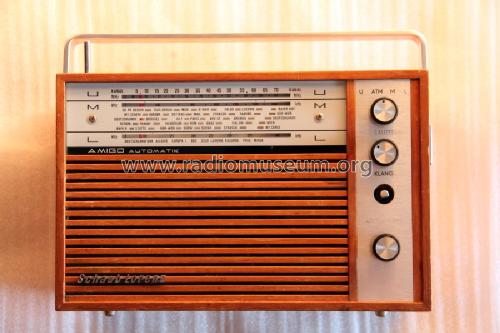

For model Amigo HL 12114175, Schaub und Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF124 AF125 AF137 AF137 AF138 AC151 AC151 AC151 AC117 AC175 BA111 1N60 1N60 1N60 1N60
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

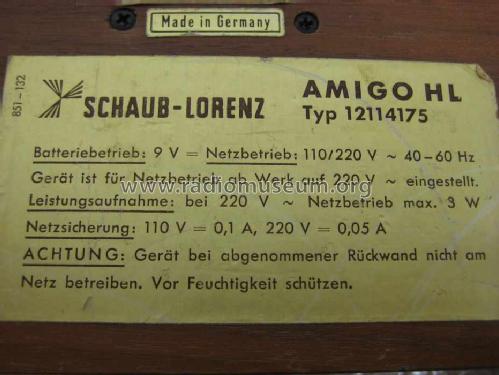

Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Amigo HL 12114175 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 190 x 105 mm / 10.6 x 7.5 x 4.1 inch
Notes Bei Netzbetrieb NF-Ausgangsleistung = 2 W.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1965/1966
Literature/Schematics (1) -- Original-techn. papers.
