Amigo SL 121151

Amigo SL 121151; Schaub und Schaub- (ID = 36851) Radio

Amigo SL 121151; Schaub und Schaub- (ID = 36888) Radio

Amigo SL 121151; Schaub und Schaub- (ID = 36889) Radio

Amigo SL 121151; Schaub und Schaub- (ID = 36891) Radio

Amigo SL 121151; Schaub und Schaub- (ID = 36890) Radio
Amigo SL 121151; Schaub und Schaub- (ID = 2631581) Radio Amigo SL 121151; Schaub und Schaub- (ID = 570701) Radio
Amigo SL 121151; Schaub und Schaub- (ID = 570699) Radio Amigo SL 121151; Schaub und Schaub- (ID = 2299590) Radio
Amigo SL 121151; Schaub und Schaub- (ID = 570700) Radio Amigo SL 121151; Schaub und Schaub- (ID = 2299591) Radio
Amigo SL 121151; Schaub und Schaub- (ID = 4037) Radio Amigo SL 121151; Schaub und Schaub- (ID = 4034) Radio
Amigo SL 121151; Schaub und Schaub- (ID = 4035) Radio Amigo SL 121151; Schaub und Schaub- (ID = 4036) Radio
Use red slider bar for more.
Amigo SL 121151; Schaub und Schaub- (ID = 2631581) Radio

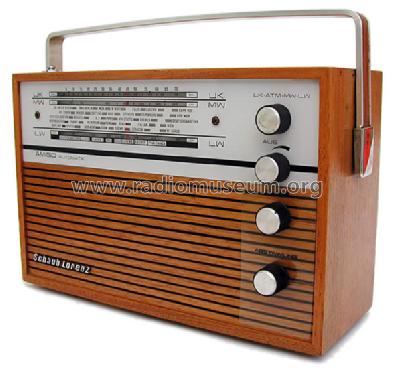

Schaub und Schaub-: Amigo SL 121151 [Radio] ID = 2631581 1400x1014

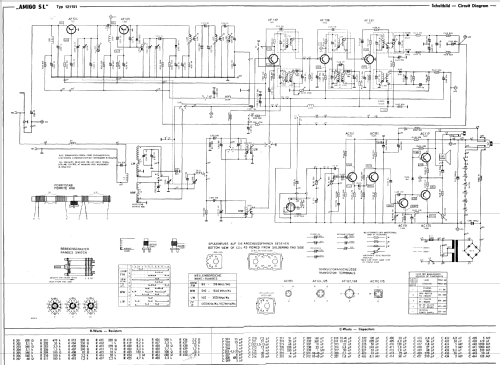

Select picture or schematic to display from thumbnails on the right and click for download.
For model Amigo SL 121151, Schaub und Schaub-Lorenz:
radio portatile della mia collezione

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF124 AF125 AF137 AF138 AF137 AC151 AC151 AC151 AC117 AC175 1N60 1N60 1N60
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Amigo SL 121151 - Schaub und Schaub-Lorenz
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 272 x 180 x 102 mm / 10.7 x 7.1 x 4 inch

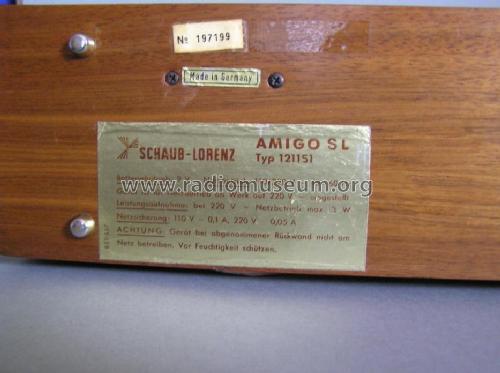

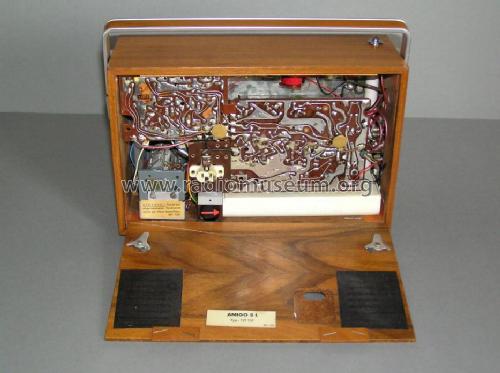

Notes Transistoren: AF124, AF125, 2× AF137, AF138, 3× AC151, AC117, AC175.
NF-Ausgangsleistung bei Netzbetrieb = 2 W.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb


All listed radios etc. from Schaub und Schaub-Lorenz
Here you find 961 models, 807 with images and 682 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
