For model Antiqua II (2) 43404, Schaub und Schaub-Lorenz:
Ebay auction by user krot59 261771184600

Country:  Germany
Manufacturer / Brand:  Schaub und Schaub-Lorenz
Year: 1965–1967 Category: Television Receiver (TV) or Monitor

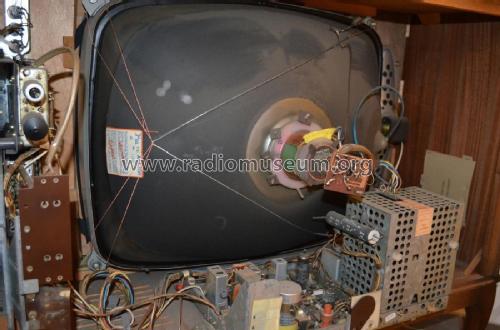

Valves / Tubes 13: PC900 PCF801 EF183 EF184 PFL200 PCH200 PCF802 PL500 PY88 DY86 PCL85 A65-11W
Semiconductors (the count is only for transistors) 3: AF139 AF139 AF126
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Antiqua II 43404 - Schaub und Schaub-Lorenz
Material Wooden case

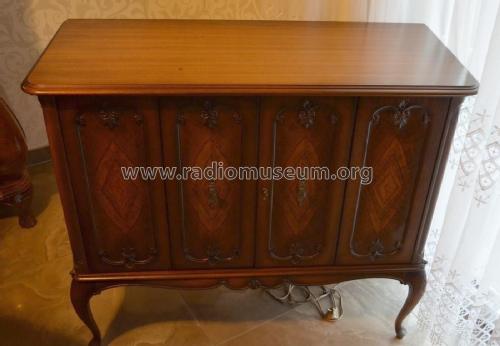

Shape Console with Push Buttons.
Dimensions (WHD) 980 x 850 x 500 mm / 38.6 x 33.5 x 19.7 inch

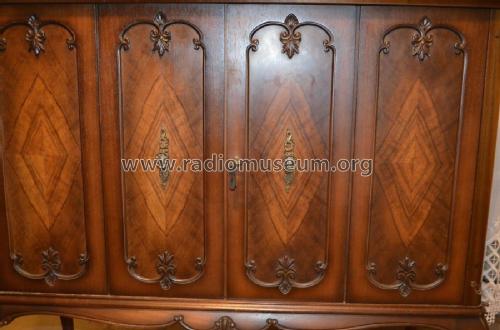

Notes VHF/UHF. Technische Daten wie Informat 59, jedoch Standgerät mit 65-cm-Bildröhre und 2 verschließbaren Falttüren.
Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
Source of data Handbuch VDRG 1966/1967

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
